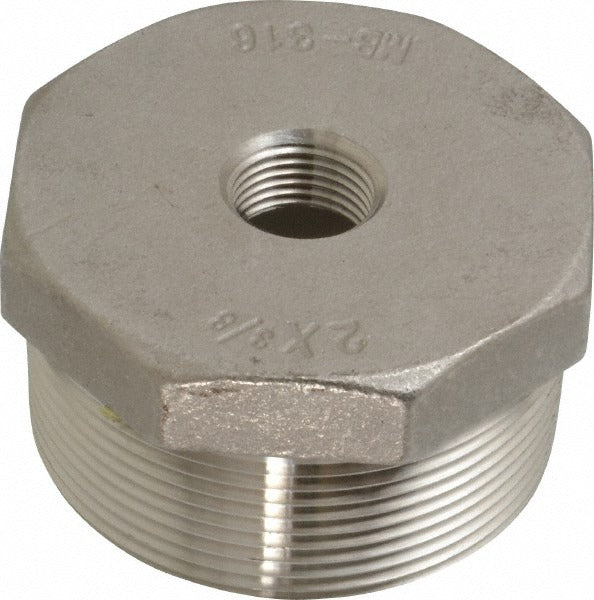

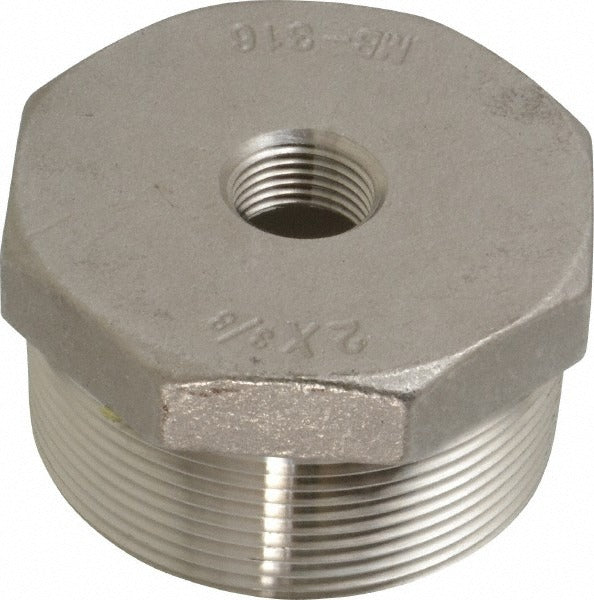

Merit Brass K614-3206 Pipe Bushing 316 Ss 2x3/8 in

Product Description

The MERIT BRASS K614-3206 is a threaded pipe bushing designed to reduce a 2-inch male NPT connection down to a 3/8-inch female NPT port. Constructed from 316 stainless steel, this bushing delivers strong resistance to corrosion and oxidation, making it well suited for demanding fluid and gas piping applications. It carries a 150 psi pressure rating and meets ISO standards. At 1-7/16 inches in length, it installs directly into threaded piping systems without additional hardware. Licensed plumbers and pipefitters are the primary installers of this type of fitting in both industrial and commercial settings.

This bushing is used wherever a piping system requires a reduction from a 2-inch line to a 3/8-inch branch or instrument port. Common applications include process piping, chemical handling lines, marine plumbing, and food-grade or sanitary systems where 316 stainless steel is specified for its superior chloride resistance compared to 304 grade. It is appropriate for both liquid and compatible gas service within its rated pressure limits.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh or chloride-rich environments
• MNPT x FNPT threaded end connections for tool-only installation into standard NPT piping systems
• 150 psi pressure rating suitable for a wide range of fluid and gas service applications
• ISO standard compliance for consistent dimensional and performance reliability
• Compact 1-7/16 inch body length minimizes space requirements at the connection point
• Reduces 2-inch male pipe threads to 3/8-inch female port in a single fitting

Compatibility

Designed as an OEM-style threaded pipe bushing for standard NPT piping systems requiring a 2-inch to 3/8-inch reduction in 316 stainless steel at 150 psi service conditions.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Depressurize and drain the affected piping section completely before removing any existing fittings or installing this bushing. Apply an appropriate thread sealant or PTFE tape to the male threads in accordance with the applicable piping code before making up the joint. Do not overtighten threaded stainless steel fittings, as galling can occur and damage the threads permanently.
