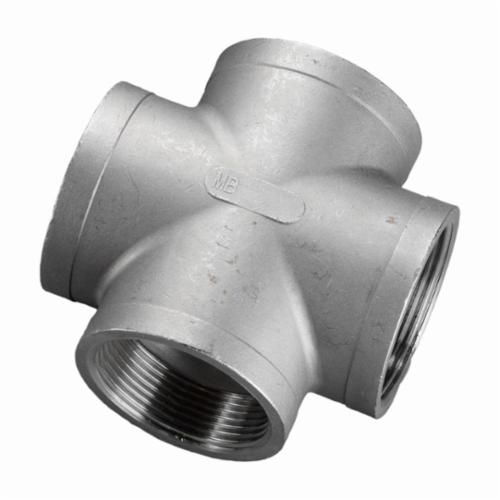

Merit Brass K610-08 Banded Pipe Cross 1/2 in FNPT 150 lb 316/316L Stainless Steel

Product Description

The Merit Brass K610-08 is a banded pipe cross made from 316/316L stainless steel. It is designed for connecting four pipes in a plumbing system. This fitting has a nominal size of half an inch and features female national pipe threads on all ends. The pressure class is rated at 150 pounds, making it suitable for various applications. With a dimension of one point one inches outer diameter, it meets the needs for durable pipe connections.

• Material: 316/316L stainless steel
• Nominal size: 1/2 inch
• End style: FNPT

Product Highlights

This fitting is essential for creating branches in a piping system while maintaining strong pressure ratings. It performs well in various environments due to its robust stainless steel construction.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer Part Number: K610-08

Technical Specifications

• Dimensions: 1.1 inches OD
• Domestic/Import: Import
• End Style: FNPT
• Fitting/Connector Type: Cross
• Material: 316/316L stainless steel
• Nominal Size: 1/2 inch
• Pressure Class: 150 lb
• Temperature Rating: 100 degrees Fahrenheit
• Type: Banded
