Merit Brass K601-24 Stainless Steel 90 Degree Elbow Class 150 1-1/2 NPT Female

Product Description

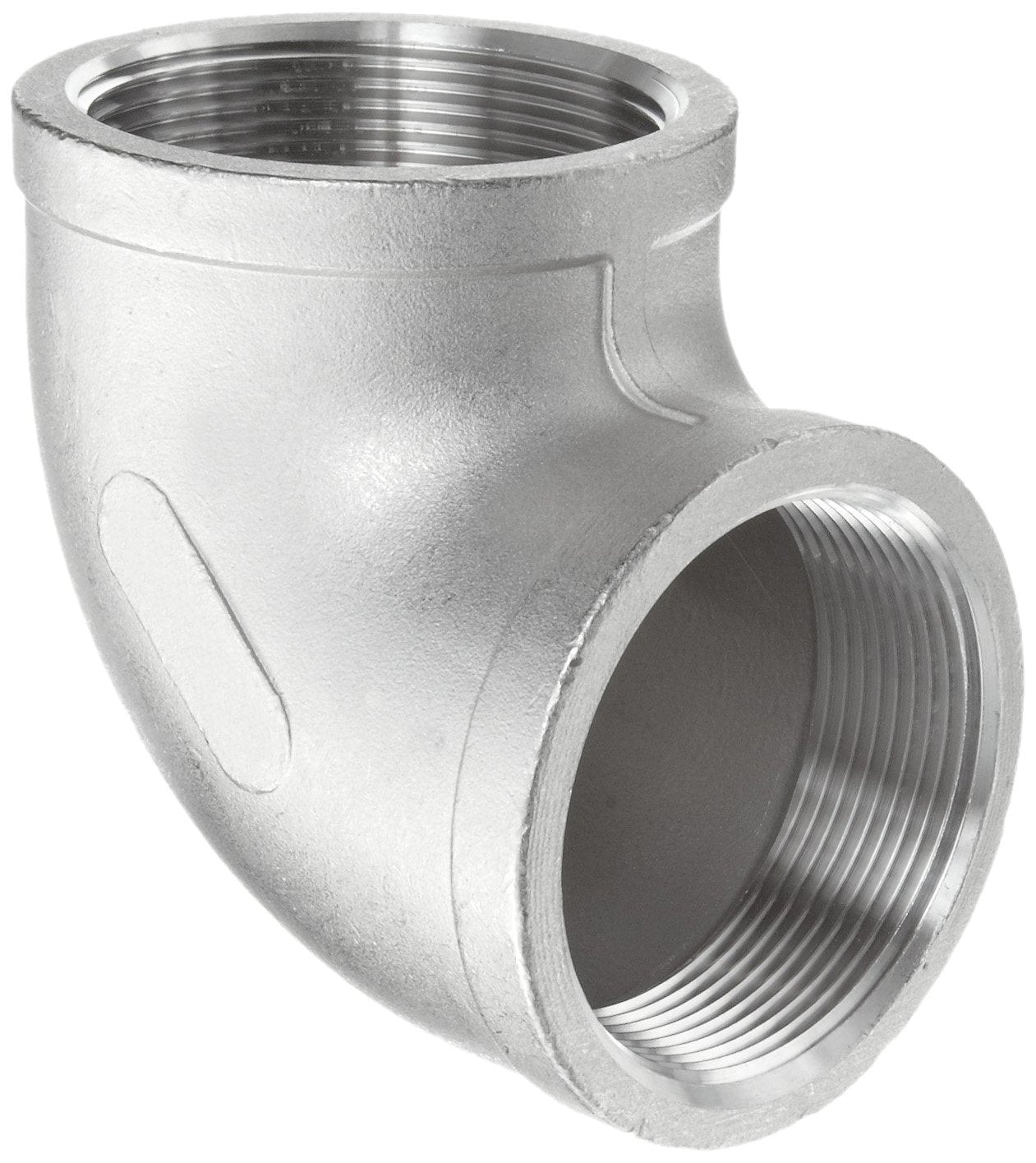

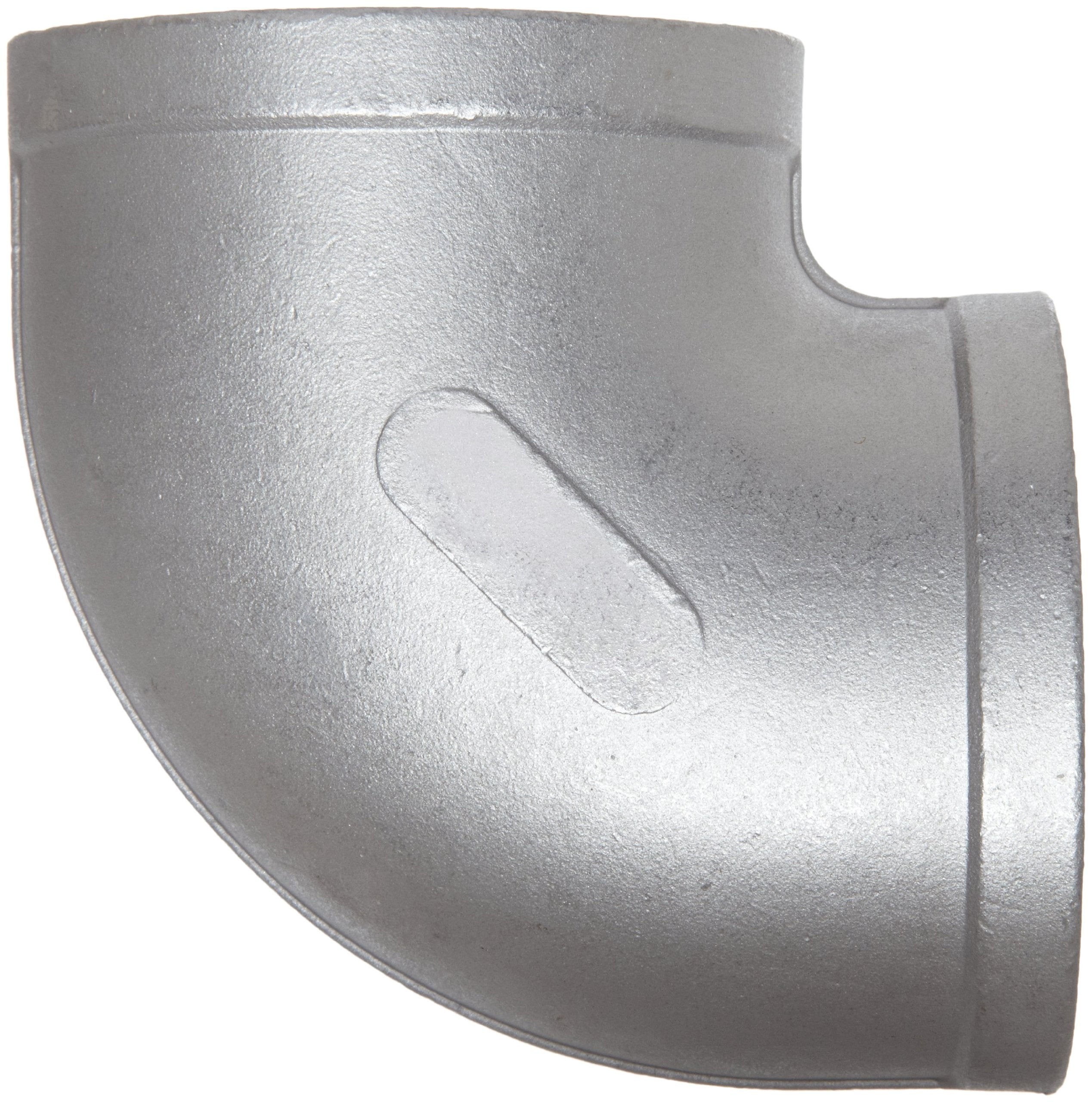

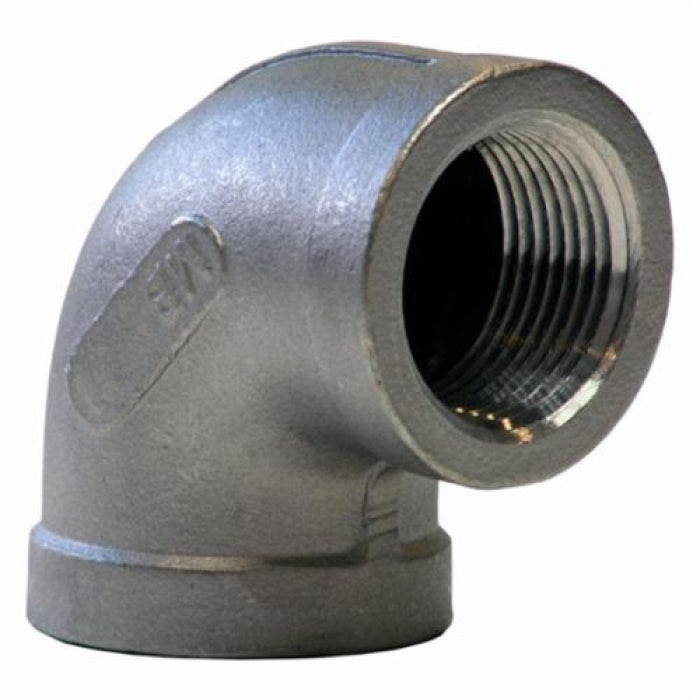

The Merit Brass K601-24 is a class 150, 90-degree elbow made from high-strength stainless steel 316. This durable elbow is designed to change flow direction between two pipes, featuring female National Pipe Taper (NPT) threads for robust and secure connections.

• 90-degree angle for efficient directional change in pipeline systems.
• Features female NPT threads, compatible with similarly threaded pipe fittings.
• Constructed from stainless steel 316, providing enhanced strength and superior corrosion resistance.

Product Highlights

This elbow fitting adheres to ANSI B1.20.1 and ISO 49 standards, ensuring reliability and quality. Suitable for use across various industrial applications, it supports pipe connectivity in environments requiring durability and corrosion resistance.

Technical Specifications

• Type: 90-degree Elbow
• Material: 316 Stainless Steel
• Pressure Class: Class 150
• End Style: FNPT
• Connection Size: 1-1/2 in
• Temperature Rating: 100 degrees Fahrenheit
• Standards/Certifications: ANSI B1.20.1, ISO 49-1983
