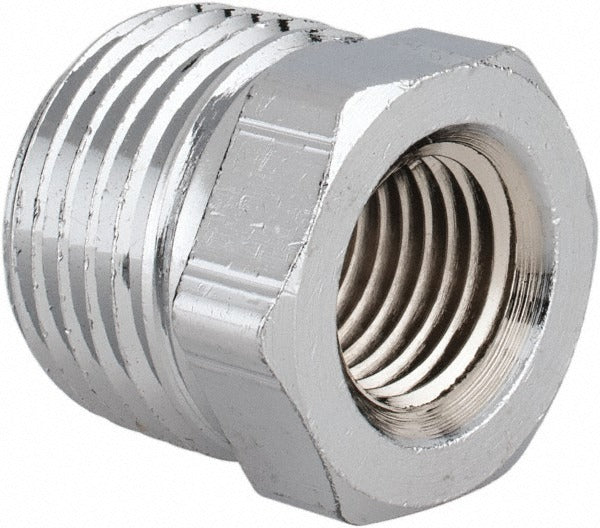

Merit Brass C114-0804 Brass Pipe Bushing 1/2x1/4 Mnpt Fnpt

Product Description

The MERIT BRASS C114-0804 is a threaded brass pipe bushing designed to reduce a 1/2-inch male NPT connection down to a 1/4-inch female NPT port. This hex bushing serves as a compact, in-line reducer for joining two threaded pipe segments of different diameters in a single fitting. Rated Class 125, it is built for low- to medium-pressure service in water, air, oil, and compatible fluid systems. Plumbers, pipefitters, and HVAC technicians use this type of fitting during system assembly, repairs, and modifications where pipe size transitions are required.

This bushing is suited for residential and light commercial plumbing, HVAC piping, compressed air lines, and general industrial fluid handling. The MNPT x FNPT end configuration threads directly onto a 1/2-inch male-threaded pipe or fitting and accepts a 1/4-inch male-threaded component into its female end. Brass construction provides good corrosion resistance and compatibility with copper and brass pipe systems.

Key Features

• Reduces 1/2-inch MNPT to 1/4-inch FNPT in a single compact fitting
• Threaded end connections for tool-installed, pressure-rated assembly
• Class 125 pressure rating suitable for water, air, and compatible fluid service
• Brass material offers corrosion resistance and compatibility with brass and copper systems
• Standard NPT thread form for broad interchangeability with domestic and import fittings

Compatibility

Designed as an OEM-style replacement or new-installation threaded brass bushing for 1/2-inch MNPT x 1/4-inch FNPT connections in Class 125 piping systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable IPC and local plumbing codes. Shut off and depressurize the affected line before disassembly or installation. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten threaded brass fittings, as excess torque can crack the hex body.
