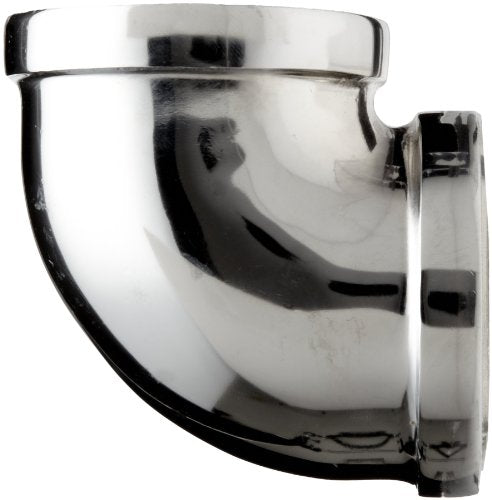

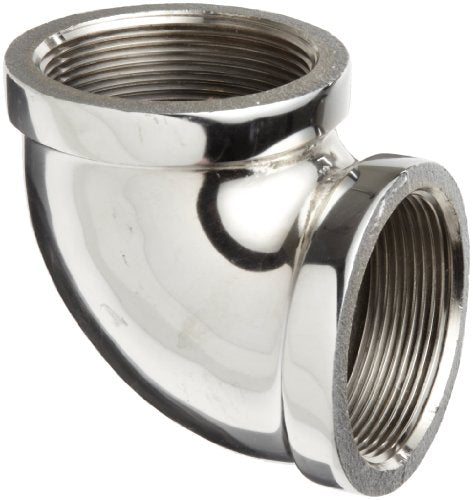

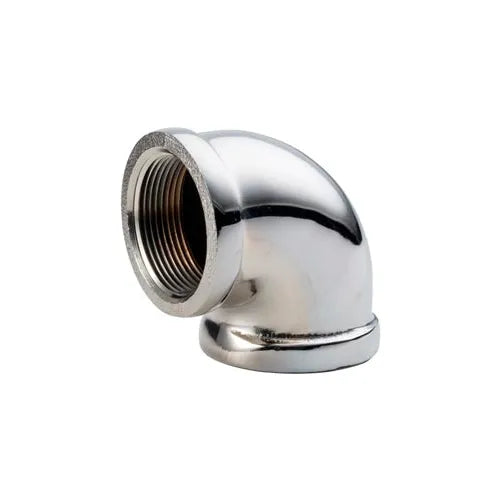

Merit Brass C101-06 Chrome Plated Brass Pipe Fitting, 90 Degree Elbow, 3/8 inches NPT Female

Product Description

The Merit Brass C101-06 is a chrome-plated brass pipe fitting, specifically a 90-degree elbow with a 3/8" NPT female connection. Chrome plated brass fittings are suitable for low pressure applications for water oil and gas (W.O.G.).

• Fittings have pressure ratings of 125 psi for steam and 200 for W.O.G. and meet ANSI B 1.20.1 and ANSI B 16.15.
• They offer superior corrosion resistance and the material's relative softness allows for easy installation and a tight seal.
• Chrome plated brass fittings are often utilized because they are easy to clean, do not attract dirt and bacteria, and maintain a shiny finish.

Product Highlights

This fitting is easy to clean, offers superior corrosion resistance, and ensures a tight seal.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: C101-06
• Country of Origin: Thailand

Technical Specifications

• Brand: Merit Brass
• Manufacturer: Merit Brass
• Model / MPN: C101-06
• Size: 3/8 Inch
• Number of Items: 1.0
• Product Type: HOSE_PIPE_FITTING
• End Style: FNPT
• Fitting / Connector Type: 90 deg Elbow
• Nominal Size: 3/8 in
• Pressure Class: 125 Lb
• Finish: Chrome Plated
• Material: BRASS
• Pressure Rating: 125 To 200 psi
• Temperature Rating: -20 to 400 deg F
• Fitting Type: 90 Degrees Elbow
• Fitting Size: 3/8
• End Connections: FNPT x FNPT
• Connection Type: FNPT|FNPT
• Class: 125
• Connection Size 2: 3/8 in
• Connection Type 1: FNPT
• Connection Type 2: FNPT
• Material Construction: Brass
• Angle: 90
• Manufacturers Part Number: C101-06
