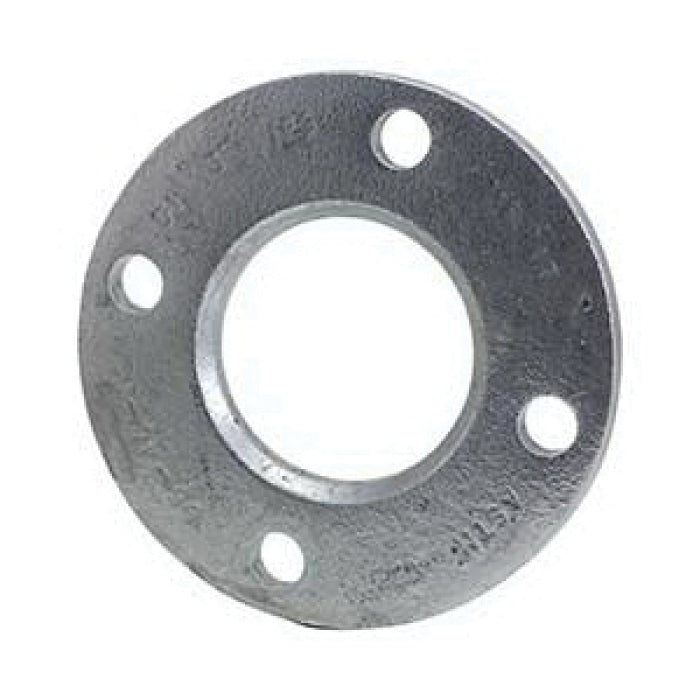

Merit Brass AGDI-128 Back-Up Flange 8 in

Product Description

Merit Brass AGDI-128 is a back-up flange with a nominal size of eight inches. This flange has an inside diameter of eight and three-quarter inches and a thickness of five-eighths inches. It features an eleven and three-quarter inch bolt circle with eight bolt holes sized at seven-eighths inches. The outside diameter measures thirteen and one-half inches. Constructed from ductile iron, this import flange comes with a galvanized finish.

• Nominal size: 8 inches
• Material: Ductile iron
• Galvanized finish for durability

Product Highlights

Ideal for various plumbing applications requiring reliable and robust flange solutions.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: AGDI-128

Technical Specifications

• Nominal Size: 8 in
• Inside Diameter: 8-3/4 in
• Outside Diameter: 13-1/2 in
• Thickness: 5/8 in
• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Material: Ductile Iron
• Finish: Galvanized
• Domestic/Import: Import
