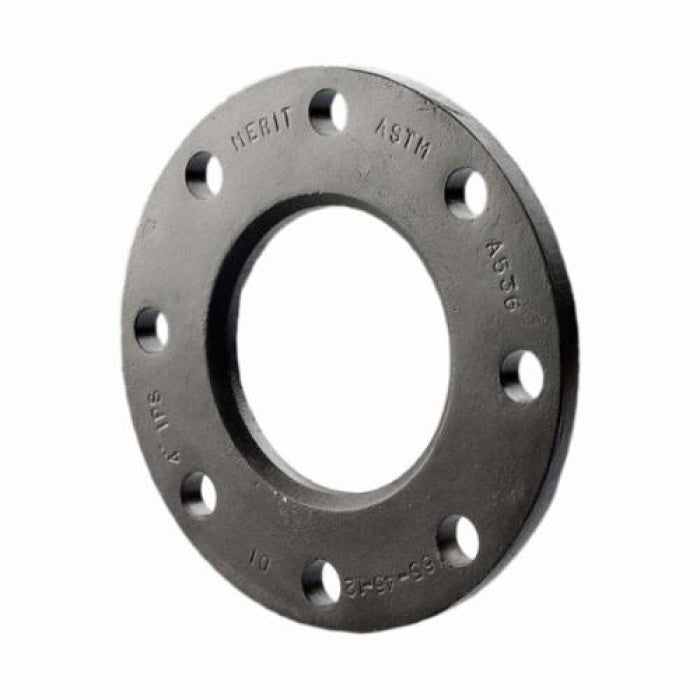

Merit Brass ADI-40 Back-Up Flange 2-1/2 in

Product Description

Merit Brass ADI-40 is a reliable back-up flange designed for various piping applications. This flange has a nominal size of two and one-half inches and an inside diameter of two point nine four inches. It is made from ductile iron, ensuring durability and resistance to wear. The flange features a thickness of one-half inch and a bolt circle diameter of five and one-half inches. It is suitable for use in both domestic and industrial settings.

• Nominal size of two and one-half inches
• Ductile iron construction for strength
• Four bolt holes for secure installation

Product Highlights

This product helps maintain pipe integrity and provides a secure connection in piping systems.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 2-1/2 inches
• Inside Diameter: 2.94 inches
• Outside Diameter: 7 inches
• Thickness: 1/2 inch
• Bolt Circle Diameter: 5-1/2 inches
• Bolt Hole Size: 3/4 inch
• Number of Bolt Holes: 4
• Material: Ductile Iron
• Domestic/Import: Import
