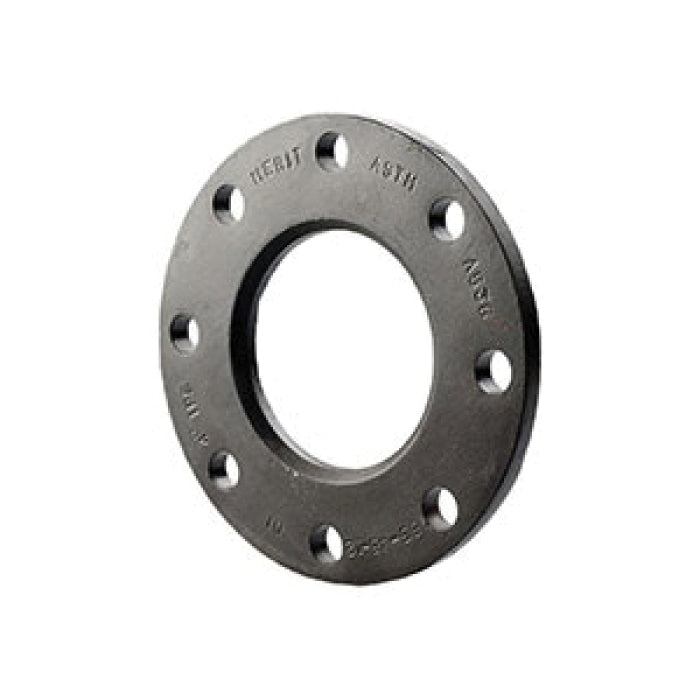

Merit Brass ADI-20 Back-Up Flange, 1-1/4 in

Product Description

Merit Brass ADI-20 is a back-up flange designed for durable performance in plumbing applications. This flange has a nominal size of one and one-quarter inches with an inside diameter of one point seventy-two inches. It features a thickness of one-half inch and a bolt circle diameter of three and one-half inches. This product is constructed from ductile iron, offering strength and reliability for various installations.

• Nominal size of one and one-quarter inches
• Constructed from ductile iron
• Includes four bolt holes

Product Highlights

The Merit Brass ADI-20 is designed for secure connection and is ideal for use in piping systems that require reliable back-up supports. The four bolt holes allow for easy installation and provide stability.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• MPN: ADI-20
• Material: Ductile Iron
• Nominal Size: 1-1/4 in
• Inside Diameter: 1.72 in
• Outside Diameter: 4-5/8 in
• Thickness: 1/2 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 1/2 in
• Number of Bolt Holes: 4
• Domestic/Import: Import
