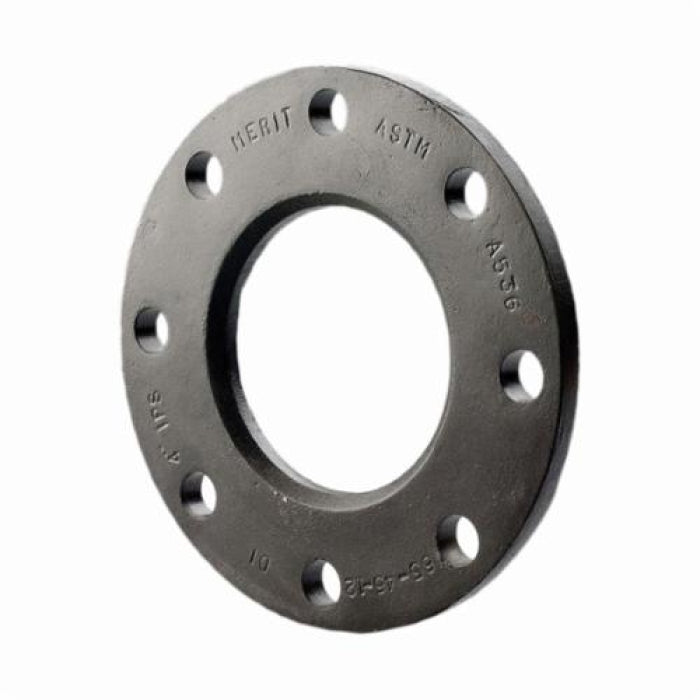

Merit Brass ADI-192 Back-Up Flange 12 in Ductile Iron Import

Product Description

Merit Brass ADI-192 is a back-up flange designed for pipe applications. This product features a nominal size of twelve inches and is made from ductile iron. The dimensions include an inside diameter of twelve and seven-eighths inches and a thickness of three-quarters of an inch. It is suitable for use in various plumbing and HVAC connections.

• Durable ductile iron construction
• Bolt circle diameter of seventeen inches
• Includes twelve bolt holes for secure installation

Product Highlights

This flange is designed for reliability and strength in pipe fittings, making it ideal for both residential and commercial projects.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 12 in
• Inside Diameter: 12-7/8 in
• Outside Diameter: 19 in
• Thickness: 3/4 in
• Bolt Circle Diameter: 17 in
• Bolt Hole Size: 1 in
• Number of Bolt Holes: 12
• Material: Ductile Iron
• Domestic/Import: Import
