Merit Brass A75140L-16 Raised Face Weld Neck Flange 1 in Import

Product Description

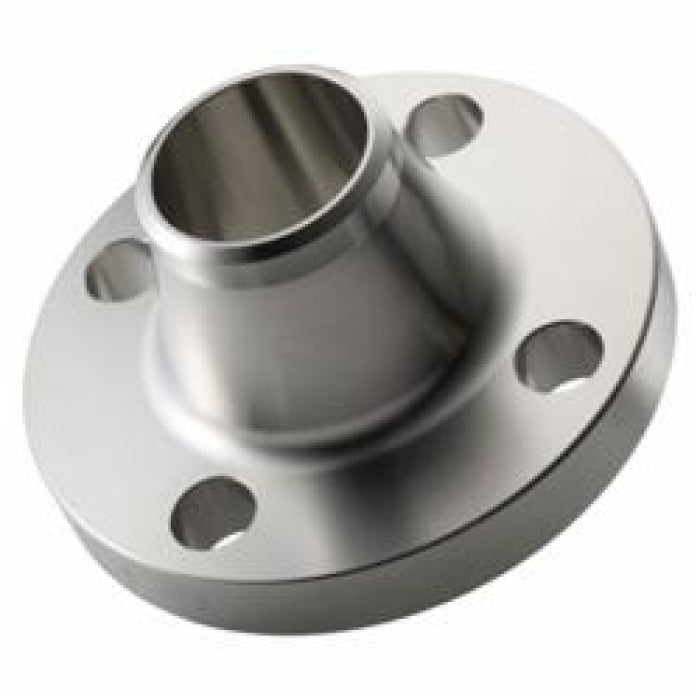

The Merit Brass A75140L-16 is a raised face weld neck flange made from forged 316/316L stainless steel. It is designed for nominal dimensions of one inch. The flange has a thickness of zero point six nine inches, making it suitable for various applications in plumbing and piping systems.

• Material: Forged 316/316L Stainless Steel
• Pressure Class: 300 lb
• Compatible with SCH 40/STD Bore

Product Highlights

This flange is ideal for high-pressure applications and provides reliable performance in critical environments.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.05 in
• Thickness: 0.69 in
• Outside Diameter: 4.88 in
• Hub Diameter: 2.12 in
• Length Through Hub: 2.44 in
• Bolt Circle Diameter: 3-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Bore Size: SCH 40/STD
• Pressure Class: 300 lb
• Domestic/Import: Import
