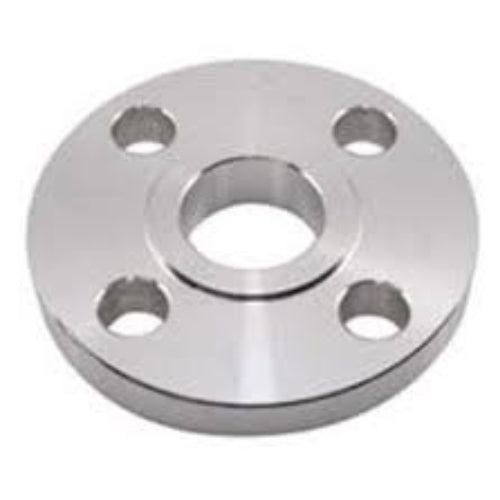

Merit Brass A750L-24 Raised Face Slip-On Flange 300 lb 1-1/2 in

Product Description

Merit Brass A750L-24 is a raised face slip-on flange designed for reliable connection in piping systems. It has a nominal size of one and a half inches.

• Made from forged 316/316L stainless steel
• Rated for a pressure class of 300 lb
• Features four bolt holes for secure installation

Product Highlights

This slip-on flange is ideal for various industrial applications including plumbing and HVAC systems. Its durable construction ensures a strong and leak-proof connection.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A750L-24

Technical Specifications

• Nominal Size: 1-1/2 inches
• Inside Diameter: 1.95 inches
• Outside Diameter: 6.12 inches
• Hub Diameter: 2-3/4 inches
• Thickness: 0.81 inches
• Length Through Hub: 1.06 inches
• Bolt Circle Diameter: 4-1/2 inches
• Bolt Hole Size: 0.88 inches
• Number of Bolt Holes: 4
• Pressure Class: 300 lb
• Material: Forged 316/316L Stainless Steel
• Domestic/Import: Import
