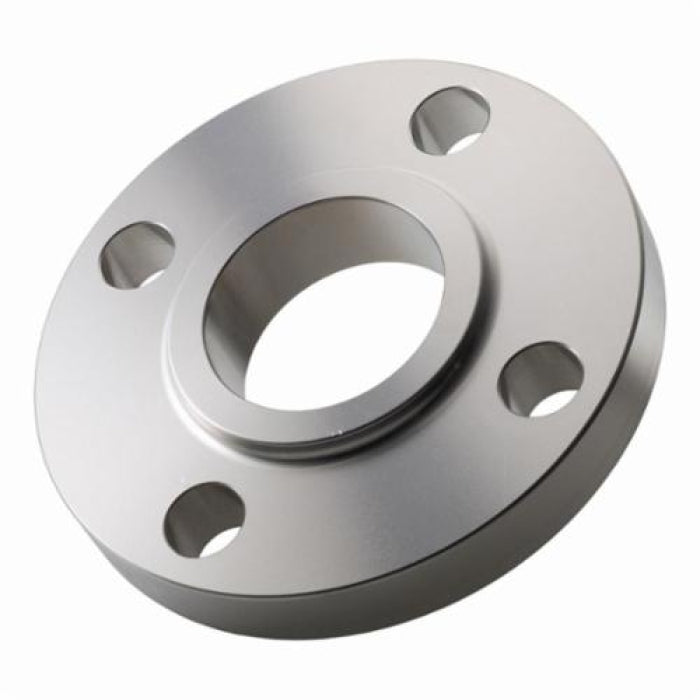

Merit Brass A750L-16 Raised Face Slip-On Flange 1 in 300 lb

Product Description

Merit Brass A750L-16 is a raised face slip-on flange with a nominal size of one inch. The flange is made from forged 316/316L stainless steel for enhanced strength and durability. The inside diameter measures one point thirty-six inches, and it has a thickness of zero point sixty-nine inches.

• Bolt circle diameter of three and one-half inches
• Four bolt holes with a hole size of three-fourths inches
• Pressure class rated for three hundred pounds

Product Highlights

This flange is ideal for various piping applications where a reliable connection is required.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.36 in
• Thickness: 0.69 in
• Outside Diameter: 4.88 in
• Length Through Hub: 1.06 in
• Hub Diameter: 2.12 in
• Bolt Circle Diameter: 3-1/2 in
• Number of Bolt Holes: 4
• Material: Forged 316/316L Stainless Steel
• Pressure Class: 300 lb
• Domestic/Import: Import
• Bolt Hole Size: 3/4 in
