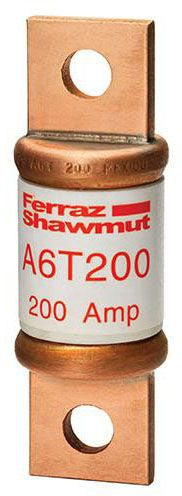

Merit Brass A6T200 600V Class T Fuse 200A

Product Description

The MERIT BRASS A6T200 is a 600-volt Class T current-limiting fuse rated at 200 amps. Class T fuses are recognized for their compact form factor and high interrupting capacity, making them a reliable overcurrent protection device in electrical panels, disconnect switches, and motor control equipment. This fuse is designed for use in applications where space is limited and fast-acting protection is required. Electricians and electrical contractors install Class T fuses as part of NEC-compliant branch circuit and equipment protection schemes.

The A6T200 is suited for commercial and industrial electrical systems requiring 600-volt overcurrent protection at the 200-amp current rating. Its compact dimensions allow it to fit Class T fuse holders and fusible disconnect switches designed for this fuse type. This fuse ships individually and is a direct replacement for systems currently using a 200-amp Class T format fuse in a 600-volt-rated circuit.

Key Features

• 600-volt voltage rating for commercial and industrial circuit protection
• 200-amp current rating for branch circuit and equipment applications
• Class T form factor with compact dimensions for space-constrained enclosures
• Current-limiting design provides fast-acting overcurrent interruption
• Sold individually, one fuse per pack

Compatibility

Designed as an OEM-style replacement for Class T 200-amp 600-volt fuse holders and fusible disconnect switches that accept the Class T fuse form factor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before removing or installing any fuse. Use an appropriate Class T fuse puller when servicing energized or recently energized equipment. Verify the replacement fuse voltage and amperage ratings match the overcurrent protection requirements of the circuit before installation.

Technical Specifications

• Voltage Rating: 600 volts
• Amperage Rating: 200 amps
• Fuse Class: Class T
• Length: 3.440 inches
• Width: 1.380 inches
• Height: 1.380 inches
• Weight: 0.25 pounds
• Quantity per Pack: 1
• UPC: 78200189148

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: A6T200
