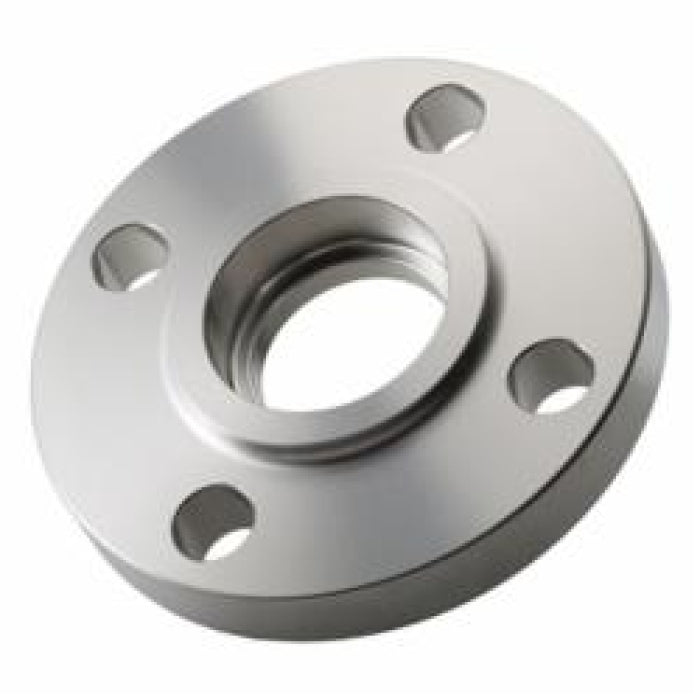

Merit Brass A653L-64 Raised Face Socket Weld Flange 4 in 150 lb

Product Description

Merit Brass A653L-64 is a raised face socket weld flange designed for secure connections in piping systems. This flange has a nominal size of four inches and is constructed from 316/316L stainless steel, ensuring durability in various environments. The product dimensions include an inside diameter of four point fifty-seven inches, an outside diameter of nine inches, and a thickness of point ninety-four inches.

• Constructed from 316/316L stainless steel
• 150 lb pressure class
• Compatibility with SCH 40S bore

Product Highlights

This socket weld flange is ideal for use in high-pressure piping systems. It features eight bolt holes for secure fastenings and a bolt circle diameter of seven and one-half inches.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A653L-64

Technical Specifications

• Material: 316/316L Stainless Steel
• Nominal Size: 4 in
• Inside Diameter: 4.57 in
• Outside Diameter: 9 in
• Thickness: 0.94 in
• Bore Size: SCH 40S
• Hub Diameter: 5.31 in
• Length Through Hub: 1.31 in
• Pressure Class: 150 lb
• Number of Bolt Holes: 8
• Bolt Hole Size: 5/8 in
• Bolt Circle Diameter: 7-1/2 in
• Domestic/Import: Import
