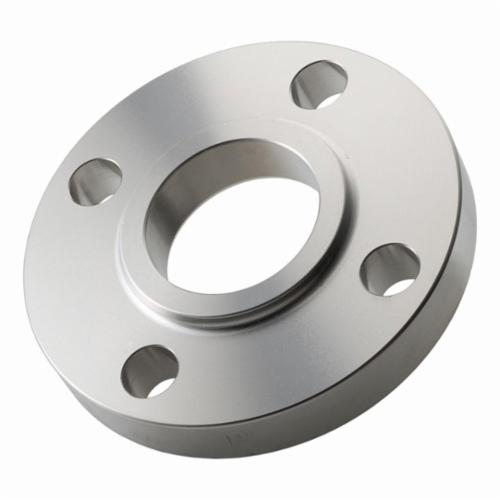

Merit Brass A652L-24 Lap Joint Flange, 1-1/2 in, 316/316L Stainless Steel, 150 lb, Import

Product Description

Merit Brass offers the A652L-24 Lap Joint Flange. It features a nominal size of one and one-half inches. The flange is made from 316 and 316L stainless steel. It is designed for 150 lb pressure applications. The inside diameter measures one point ninety-seven inches. The flange is suitable for various piping systems.

• Material: 316/316L Stainless Steel
• Nominal Size: 1-1/2 in
• Pressure Rating: 150 lb

Product Highlights

This product is built for durability and integrity in plumbing applications. The design accommodates a tight seal in piping systems.

Product Information

Standard Information

• Type: Lap Joint Flange
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 1-1/2 in
• Inside Diameter: 1.97 in
• Outside Diameter: 5 in
• Thickness: 0.69 in
• Hub Diameter: 2.56 in
• Length Through Hub: 0.88 in
• Bolt Circle Diameter: 3.88 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 0.62 in
• Pressure Class: 150 lb
• Domestic/Import: Import
