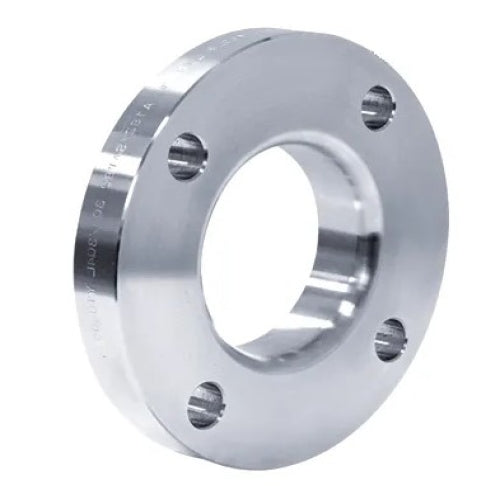

Merit Brass A652L-128 Lap Joint Flange 150 lb 8 in

Product Description

Merit Brass offers the A652L-128 Lap Joint Flange designed for reliable connections in piping systems. This product features a nominal size of eight inches and is constructed from 316/316L stainless steel for durability. The flange has an inside diameter of eight and three-quarter inches and a thickness of one point twelve inches. It is suitable for systems that require a pressure class of one hundred fifty pounds.

• Made of durable 316/316L stainless steel
• Designed for a nominal size of eight inches
• Features a bolt circle diameter of eleven and three-quarter inches

Product Highlights

This flange is ideal for use in various industrial and mechanical applications.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• MPN: A652L-128
• Material: 316/316L Stainless Steel
• Nominal Size: 8 in
• Inside Diameter: 8-3/4 in
• Outside Diameter: 13-1/2 in
• Thickness: 1.12 in
• Hub Diameter: 9.69 in
• Length Through Hub: 1-3/4 in
• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Size: 0.88 in
• Number of Bolt Holes: 8
• Pressure Class: 150 lb
• Domestic/Import: Import
