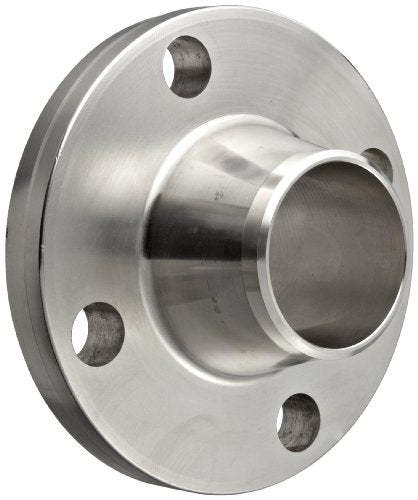

Merit Brass A65140L-96 Raised Face Weld Neck Flange, 6 in, Class 150 SCH 40

Product Description

The Merit Brass Weld Neck Flange, MPN A65140L-96, is designed for reliable pipe connections. This flange is six inches in nominal size and fits schedules up to 40. It features a solid bore, raised face for strong joint integrity.

• Constructed from 316/316L stainless steel.
• Suitable for class 150 applications.
• Includes eight bolt holes for secure installation.

Product Highlights

Ideal for industrial and plumbing applications, this flange provides durability and corrosion resistance, making it a preferred choice for many plumbing professionals.

Product Information

Standard Information

• Type: Solid Bore, Raised Face
• Material: 316/316L Stainless Steel

Technical Specifications

• Connection Size: 6 in
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Diameter: 0.88 in
• Bore Size: 6.07 in
• Hub Diameter: 3.56 in
• Thickness: 1 in
• Outside Diameter: 11 in
• Pressure Class: Class 150
• Schedule: SCH 40
• Number of Bolts: 8
