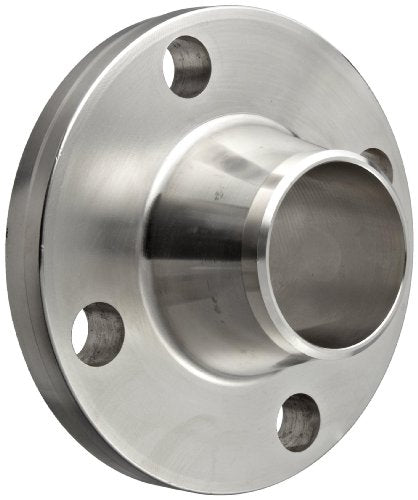

Merit Brass A65140L-48 Stainless Steel Weld Neck Flange 150 lb 3 Inch

Product Description

Designed for durability and optimal performance, the Merit Brass A65140L-48 is a premium stainless steel weld neck flange. This flange is crafted from high-quality 316/316L stainless steel, ensuring resistance to corrosion and a strong, reliable connection.

• Standard Class 150 rating handles a wide range of operating conditions.
• Fully compliant with ASME SA182 and ANSI B16.5 standards.
• Solid bore with a raised face design enhances sealing effectiveness.

Product Highlights

This weld neck flange features a 3-inch nominal size with a thickness of 0.94 inches, providing a robust interface for piping systems. It supports easy installation and is designed for long-lasting use in demanding environments.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A65140L-48

Technical Specifications

• Bolt Circle Diameter: 6 inches
• Bolt Hole Diameter: 3/4 inches
• Bore Size: 3.07 inches
• Connection Size: 3 inches
• Hub Diameter: 4-1/4 inches
• Item Name: Weld Neck Flange
• Length Through Hub: 2-3/4 inches
• Material Specifications: ASTM A182
• Material: 316/316L Stainless Steel
• Method of Manufacturer: Forged
• Number of Bolts: 4
• Outside Diameter: 7-1/2 inches
• Pressure Class: Class 150
• Schedule: SCH 40
• Thickness: 0.94 inches
• Type: Solid Bore, Raised Face
