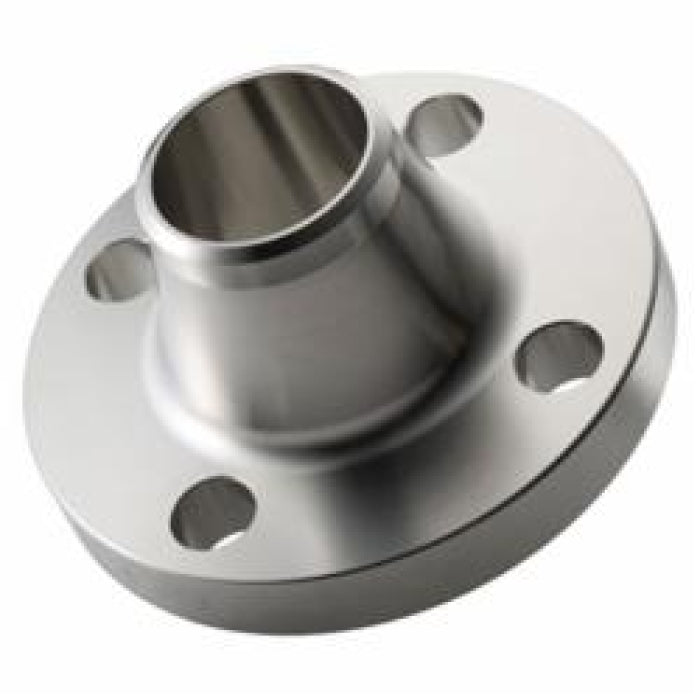

Merit Brass A65110L-96 Raised Face Weld Neck Flange 6 in SCH 10S

Product Description

The Merit Brass Weld Neck Flange, model A65110L-96, is a raised face weld neck flange designed for pipe connection. This flange features a nominal size of six inches and is made from forged 316/316L stainless steel. It has a thickness of one inch and a pressure class of 150 lb, making it suitable for various applications. The flange has a bolt circle diameter of nine and one-half inches with eight bolt holes, ensuring a secure connection in piping systems.

• Forged 316/316L stainless steel construction
• Compatible with SCH 10S pipes
• Designed for secure connections with 8 bolt holes

Product Highlights

Durable construction suitable for high-pressure applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A65110L-96

Technical Specifications

• Nominal Size: 6 in
• Inside Diameter: 6.07 in
• Outside Diameter: 11 in
• Hub Diameter: 8.12 in
• Length Through Hub: 3.88 in
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Size: 0.88 in
• Bore Size: SCH 10S
• Thickness: 1 in
• Number of Bolt Holes: 8
• Pressure Class: 150 lb
• Material: Forged 316/316L Stainless Steel
• Domestic/Import: Import
