Merit Brass A65110L-160 Weld Neck Flange 10 in replacement mpn

Product Description

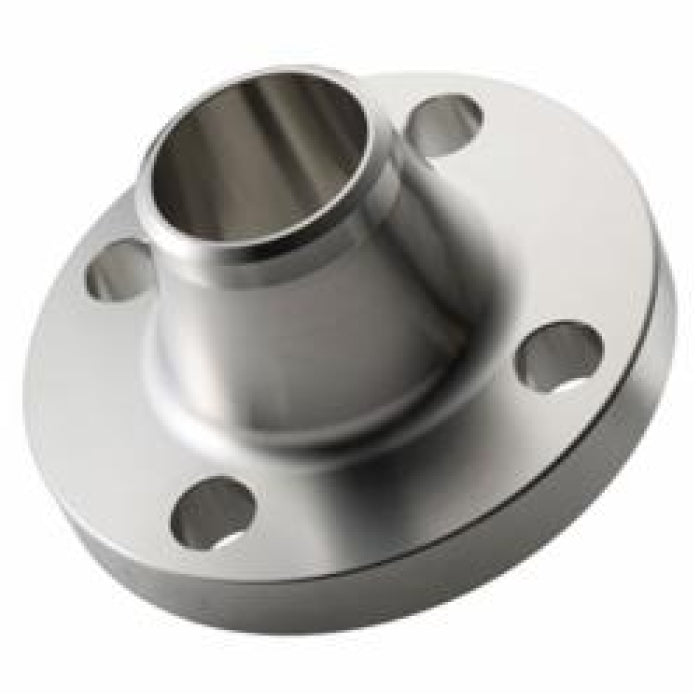

The Merit Brass A65110L-160 is a weld neck flange with a raised face. It has a 10 in nominal size, 10.02 in inside diameter, and 1.19 in thickness. Constructed from forged 316/316L stainless steel, it features a SCH 10S bore, 14-1/4 in bolt circle, and 12 bolt holes. It is rated for 150 lb.

• 7/8 in Dia bolt
• 10 inch nominal pipe size
• 316/L stainless steel for enhanced corrosion resistance

Product Highlights

This weld neck flange is made from forged 316/316L stainless steel and conforms to ANSI standards.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: A65110L-160
• Country of Origin: IN

Technical Specifications

• Bolt Circle Diameter: 14-1/4 in
• Bolt Hole Size: 1 in
• Bore Size: SCH 10S
• Hub Diameter: 12 in
• Inside Diameter: 10.02 in
• Length Through Hub: 4 in
• Material: Forged 316/316L Stainless Steel
• Nominal Size: 10 in
• Number of Bolt Holes: 12
• Outside Diameter: 16 in
• Pressure Class: 150 lb
• Thickness: 1.19 in
• Type: Raised Face
• Standards and Approvals: ANSI B16.5 | ASME SA182 | ASTM A182
• Shape: Flange
• Fitting Type: Pipe Fitting
