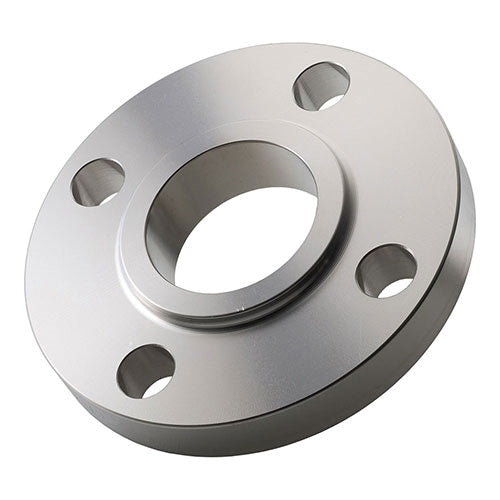

Merit Brass A650L-96 Raised Face Slip-On Flange 6 in Replacement MPN

Product Description

The Merit Brass A650L-96 is a raised face slip-on flange designed for pipe systems. This flange is made from 316 and 316L stainless steel which provides corrosion resistance and durability. It is suitable for various applications in plumbing and HVAC.

• Standard: ANSI B16.5
• Thickness: 1 inch
• Connection Size: 6 inches

Product Highlights

This flange is essential for creating strong connections in pipe systems. It features a 6 inch nominal size and is suitable for class 150 pressure applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A650L-96

Technical Specifications

• Material: 316/316L Stainless Steel
• Bolt Circle Diameter: 9-1/2 inches
• Bolt Hole Diameter: 0.88 inches
• Bolt Size: 3/4 inches
• Hub Diameter: 7.56 inches
• Length Through Hub: 1.56 inches
• Outside Diameter: 11 inches
• Pressure Class: Class 150
• Number of Bolts: 8
• Thickness: 1 inch
• Method of Manufacturer: Forged
• Material Specifications: ASTM A182
