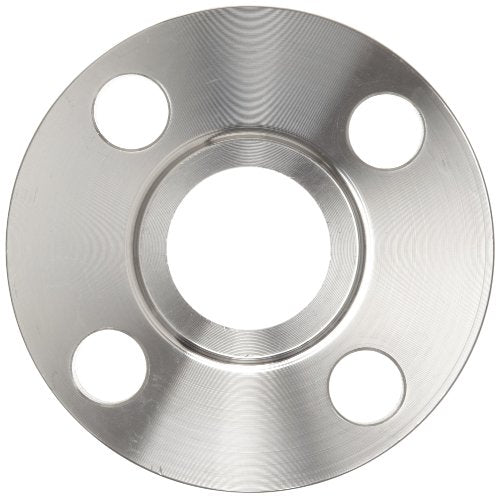

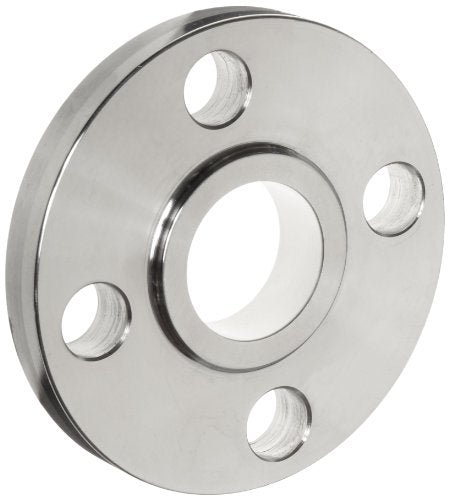

Merit Brass A650L-48 Raised Face Slip-On Flange 3 Inch Class 150

Product Description

The Merit Brass A650L-48 is a slip-on flange designed for seamless integration in piping systems. Constructed from 316/316L stainless steel, this flange is ideal for various industrial applications. Its raised face design ensures a secure and leak-proof connection.

• Made from durable 316/316L stainless steel
• Designed for Class 150 pressure systems
• Specifications meet ANSI B16.5 standards

Product Highlights

This slip-on flange is suited for both indoor and outdoor applications, ensuring reliability and performance in demanding environments.

Product Information

Standard Information

• Material: 316/316L Stainless Steel
• Pressure Class: Class 150

Technical Specifications

• Connection Size: 3 inches
• Length Through Hub: 1.19 inches
• Outside Diameter: 7-1/2 inches
• Hub Diameter: 4-1/4 inches
• Thickness: 0.94 inches
• Bolt Circle Diameter: 6 inches
• Number of Bolt Holes: 4
• Bolt Hole Diameter: 3/4 inches
• Bolt Size: 5/8 inches
• Method of Manufacturer: Forged
• Material Specifications: ASTM A182
