Merit Brass A650L-40 Raised Face Slip-On Flange 2-1/2 in

Product Description

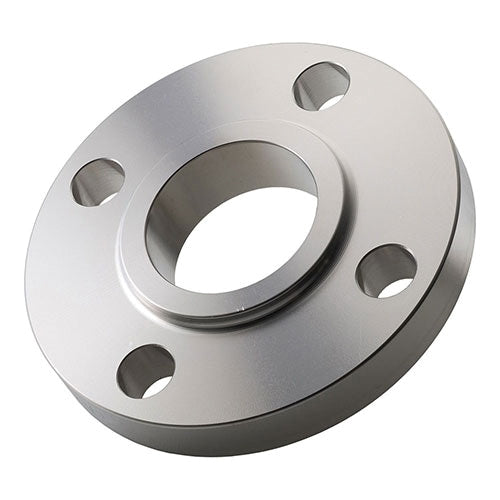

The Merit Brass A650L-40 is a raised face slip-on flange made from 316/316L stainless steel, designed for durability in various piping systems. This flange features a nominal size of two and a half inches and is suitable for Class 150 applications. The design supports easy installation and removal, making it ideal for maintenance and repair tasks.

• Standards/Certifications: ANSI B16.5
• Connection Size: 2-1/2 in
• Material: 316/316L Stainless Steel

Product Highlights

Use this flange in conjunction with appropriate piping for reliable leak-proof connections in plumbing and HVAC systems.

Product Information

Standard Information

• Material: 316/316L Stainless Steel
• Pressure Class: 150 lb

Technical Specifications

• Nominal Size: 2-1/2 in
• Outside Diameter: 7 in
• Inside Diameter: 2.94 in
• Thickness: 0.88 in
• Hub Diameter: 3.56 in
• Length Through Hub: 1.12 in
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Diameter: 3/4 in
• Number of Bolt Holes: 4
• Method of Manufacturer: Forged
• Material Specifications: ASTM A182
