Merit Brass A650L-24 Slip-On Flange Class 150 1-1/2 in 316/316L Stainless Steel

Product Description

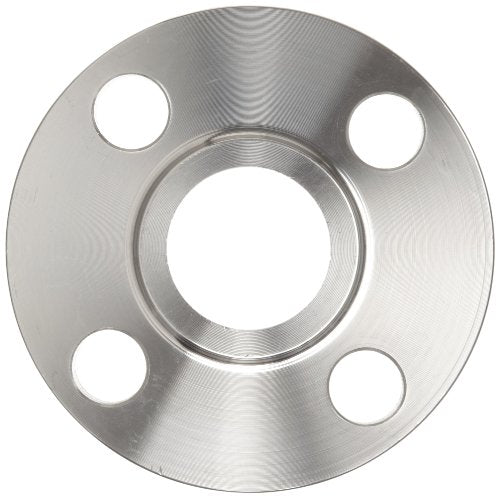

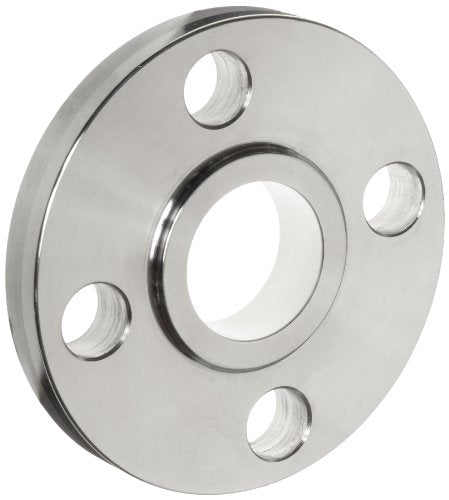

Merit Brass A650L-24 is a slip-on flange made from 316/316L stainless steel. It is designed for use in piping systems where a secure and reliable connection is required. This flange features a raised face and fits nominal pipe sizes of one and one-half inches. The pressure class rating is Class 150, ensuring compatibility with various piping applications.

• Constructed from durable 316/316L stainless steel.
• Designed for Class 150 pressure applications.
• Compatible with one and one-half inch nominal pipe size.

Product Highlights

This slip-on flange provides a strong connection in hydraulic and plumbing systems. Its raised face design allows for easy gasket placement, ensuring a leak-proof seal. Ideal for industrial applications, this flange meets ANSI B16.5 standards for reliable performance.

Product Information

Standard Information

• Type: Raised Face
• Standards/Certifications: ANSI B16.5

Technical Specifications

• Nominal Size: 1-1/2 in
• Inside Diameter: 1.95 in
• Outside Diameter: 5 in
• Thickness: 0.69 in
• Number of Bolt Holes: 4
• Bolt Circle Diameter: 3.88 in
• Bolt Hole Diameter: 0.62 in
• Hub Diameter: 2.56 in
• Length Through Hub: 0.88 in
• Material: 316/316L Stainless Steel
• Pressure Class: Class 150
• Method of Manufacturer: Forged
• Material Specifications: ASTM A182
