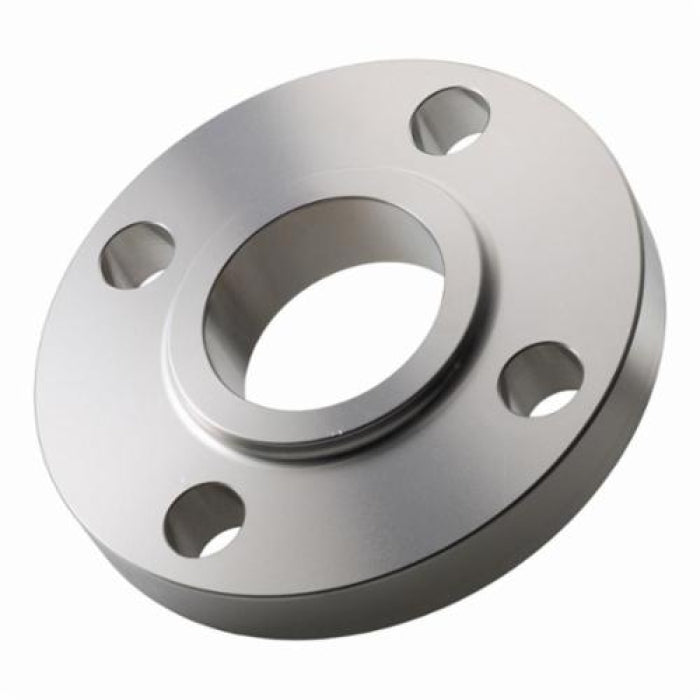

Merit Brass A650L-192 Raised Face Slip-On Flange 12 in 150 lb

Product Description

The Merit Brass A650L-192 is a raised face slip-on flange made from 316/316L stainless steel. This flange is designed for a nominal size of twelve inches. The inside diameter measures twelve point eight eight inches, and the flange thickness is one and one-quarter inches. It features a bolt circle diameter of seventeen inches with twelve bolt holes, and accepts one-inch diameter bolts. This flange is a reliable choice for various piping applications.

• Nominal size of twelve inches
• Constructed from durable 316/316L stainless steel
• Features a bolt circle diameter of seventeen inches

Product Highlights

This flange provides a strong connection for pipes and can withstand a pressure class of one hundred fifty pounds.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A650L-192

Technical Specifications

• Nominal Size: 12 in
• Inside Diameter: 12.88 in
• Outside Diameter: 19 in
• Thickness: 1-1/4 in
• Hub Diameter: 14.38 in
• Length Through Hub: 2.19 in
• Bolt Circle Diameter: 17 in
• Number of Bolt Holes: 12
• Pressure Class: 150 lb
• Bolt Hole Size: 1 in
• Domestic/Import: Import
• Material: 316/316L Stainless Steel
