Merit Brass A635BL-192 Raised Face Blind Flange 12 in 150 lb

Product Description

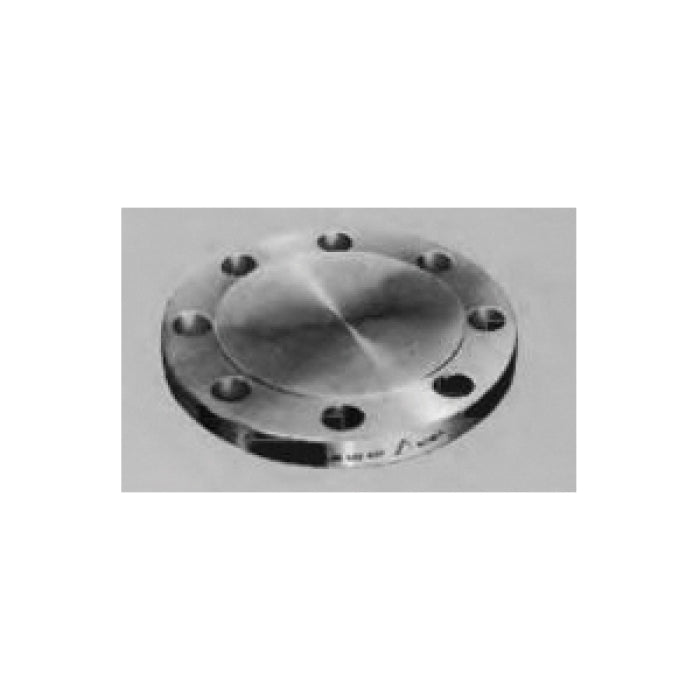

Merit Brass A635BL-192 is a raised face blind flange made of forged 316/316L stainless steel. It features a nominal size of twelve inches and is designed for use in various piping systems. This blind flange is ideal for sealing off sections of a pipeline or piping system where a connection is not required.

• Nominal size: 12 inches
• Material: Forged 316/316L stainless steel
• Pressure class: 150 lb

Product Highlights

This blind flange has a thickness of one and one-quarter inches and a bolt circle diameter of seventeen inches, providing a secure fit in piping applications.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 12 in
• Thickness: 1-1/4 in
• Bolt Circle Diameter: 17 in
• Bolt Hole Size: 1 in
• Outside Diameter: 19 in
• Hub Diameter: 14.38 in
• Pressure Class: 150 lb
• Number of Bolt Holes: 12
• Domestic/Import: Import
• Material: Forged 316/316L Stainless Steel
• Type: Raised Face
