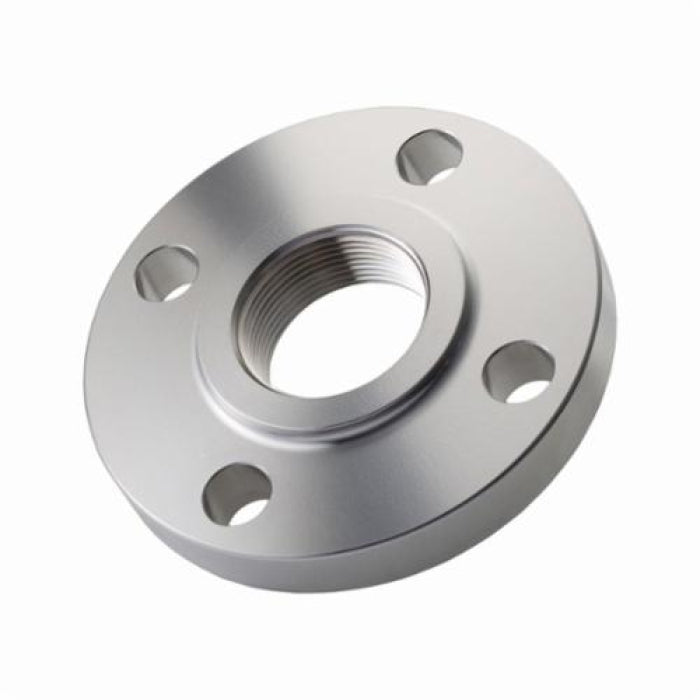

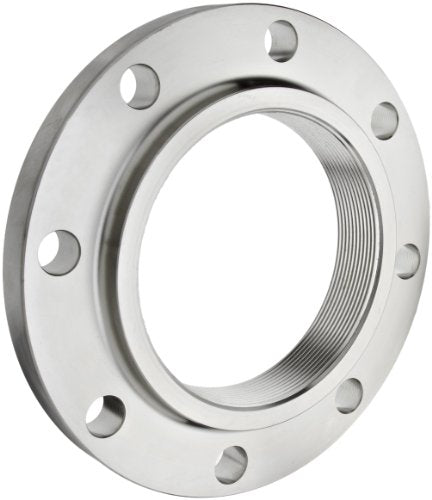

MERIT BRASS A635-64 Stainless Steel 316/316L Pipe Fitting Flange Threaded Class 150 4 Inches NPT Female

Product Description

The Merit Brass A635-64 Stainless Steel Pipe Flange offers a sturdy and reliable solution for connecting pipes in high-pressure environments. This flange is designed for easy installation with a threaded connection compatible with 4-inch NPT female pipes.

• Designed for durability with 316/316L grade stainless steel.
• Rated for pressures up to 150 lb, ensuring compatibility with high-pressure applications.
• Features straightforward threaded installation for a secure fit.

Product Highlights

These flanges are ideal for a variety of industrial settings, ensuring a tight seal and a strong connection for piping systems.

Product Information

Technical Specifications

• Material: 316/316L Stainless Steel
• Pressure Class: 150 lbs
• Connection Type: Thread
• Nominal Size: 4 inches
• Bolt Circle Diameter: 7.5 inches
• Bolt Hole Size: 0.625 inches
• Outside Diameter: 9 inches
• Thickness: 0.94 inches
• Hub Diameter: 5.31 inches
• Length Through Hub: 1.31 inches
