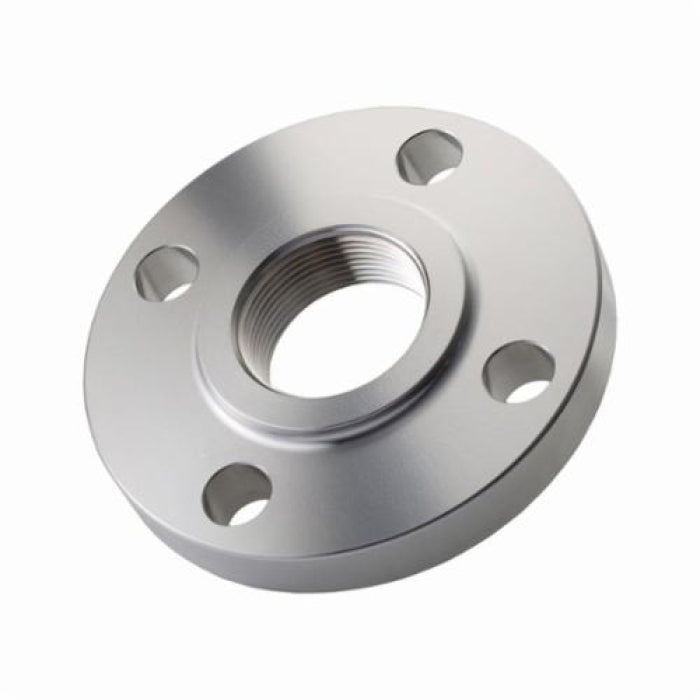

Merit Brass A635-48 Raised Face Pipe Flange 3 in Nominal 316/316L Stainless Steel

Product Description

The Merit Brass A635-48 is a raised face pipe flange made of 316/316L stainless steel, featuring a three-inch nominal size. This flange includes a thread connection and is rated for a pressure class of 150 lb. The flange is designed for reliable and durable use in various piping systems.

• Nominal size of three inches
• Made from 316/316L stainless steel
• Thread connection type

Product Highlights

Ideal for piping applications, this raised face pipe flange ensures secure and effective connections. It is suitable for use in both domestic and industrial settings.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 3 in
• Material: 316/316L Stainless Steel
• Thickness: 1.19 in
• Outside Diameter: 7-1/2 in
• Hub Diameter: 4-1/4 in
• Length Through Hub: 1.19 in
• Number of Bolt Holes: 4
• Bolt Circle Diameter: 6 in
• Bolt Hole Size: 5/8 in
• Connection Type: Thread
• Pressure Class: 150 lb
• Domestic/Import: Import
