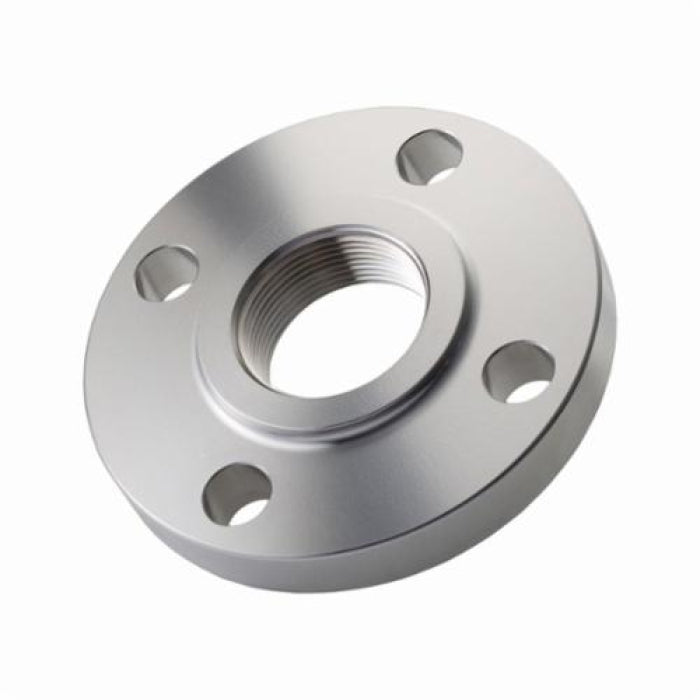

Merit Brass A635-20 Raised Face Pipe Flange 1-1/4 in 316/316L Stainless Steel

Product Description

Merit Brass A635-20 is a raised face pipe flange designed for various applications. It features a nominal size of one and one-fourth inches and is constructed from 316/316L stainless steel. This flange has a thread connection and is suitable for pressure class of 150 lb.

• Nominal size of 1-1/4 inches
• Constructed from durable 316/316L stainless steel
• Thread connection with four bolt holes for secure attachment

Product Highlights

This pipe flange is ideal for connecting pipes in plumbing and HVAC systems. It offers reliability and performance for industrial applications.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Type: Raised Face
• Nominal Size: 1-1/4 inches
• Material: 316/316L Stainless Steel
• Connection Type: Thread
• Pressure Class: 150 lb
• Thickness: 0.62 inches
• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 1/2 inches
• Outside Diameter: 4.62 inches
• Hub Diameter: 2.31 inches
• Length Through Hub: 0.81 inches
• Number of Bolt Holes: 4
• Domestic/Import: Import
