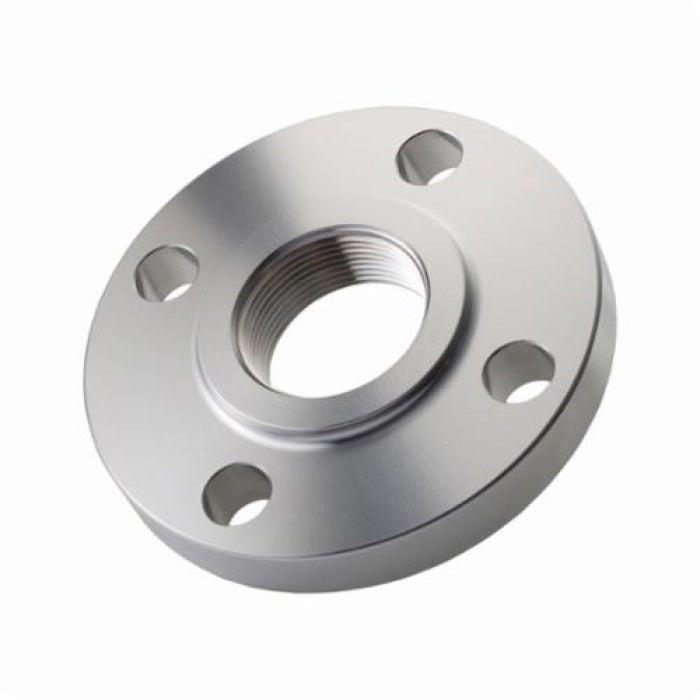

Merit Brass A635-12 Raised Face Pipe Flange 3/4 in Nominal A635-12

Product Description

Merit Brass A635-12 is a raised face pipe flange with a nominal size of three-fourths inch. This flange is made from 316/316L stainless steel and features a thread connection. It is designed for applications requiring robust performance under pressure, specifically in installations with a pressure class of 150 lb.

• Nominal size of three-fourths inch
• Material: 316/316L stainless steel
• Four bolt holes for secure attachment

Product Highlights

This pipe flange is ideal for use in a variety of plumbing and piping systems. Its durable stainless steel construction ensures long-lasting performance and resistance to corrosion.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 3/4 in
• Material: 316/316L Stainless Steel
• Thickness: 1/2 in
• Outside Diameter: 3.88 in
• Bolt Circle Diameter: 2-3/4 in
• Bolt Hole Size: 1/2 in
• Connection Type: Thread
• Pressure Class: 150 lb
• Domestic/Import: Import
• Hub Diameter: 1-1/2 in
• Length Through Hub: 0.62 in
• Number of Bolt Holes: 4
