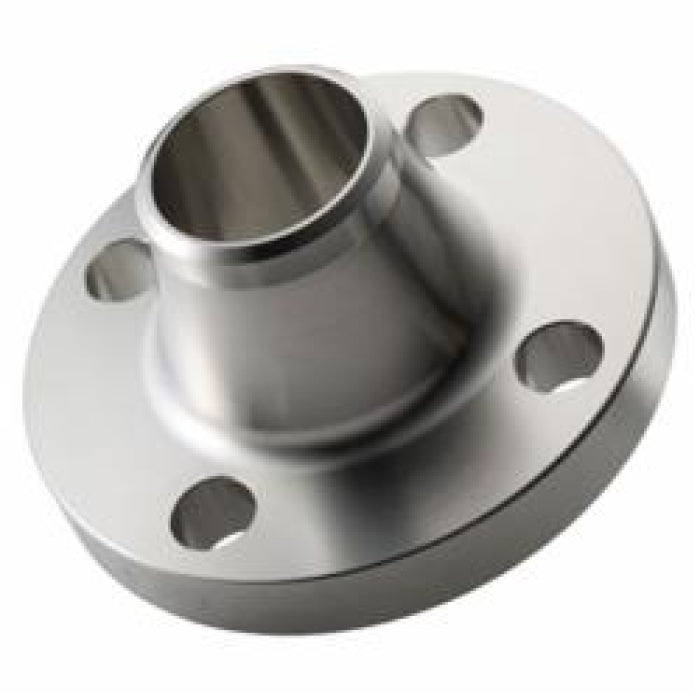

Merit Brass A55140L-32 Raised Face Weld Neck Flange 2 in 300 lb

Product Description

The Merit Brass Weld Neck Flange, MPN A55140L-32, is designed for industrial applications requiring a robust connection. This flange features a nominal size of two inches and is made from forged 304/304L stainless steel, ensuring durability and resistance to corrosion. The raised face design helps provide a secure and leak-proof seal.

• Compatible with SCH 40/STD piping systems
• Pressure class rated at 300 lb
• Import quality with precision engineering

Product Highlights

This flange is suitable for various piping installations in plumbing, HVAC, and industrial applications.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 2 in
• Inside Diameter: 2.07 in
• Hub Diameter: 3.31 in
• Outside Diameter: 6-1/2 in
• Thickness: 0.88 in
• Length Through Hub: 2-3/4 in
• Bore Size: SCH 40/STD
• Pressure Class: 300 lb
• Type: Raised Face
• Material: Forged 304/304L Stainless Steel
• Domestic/Import: Import
