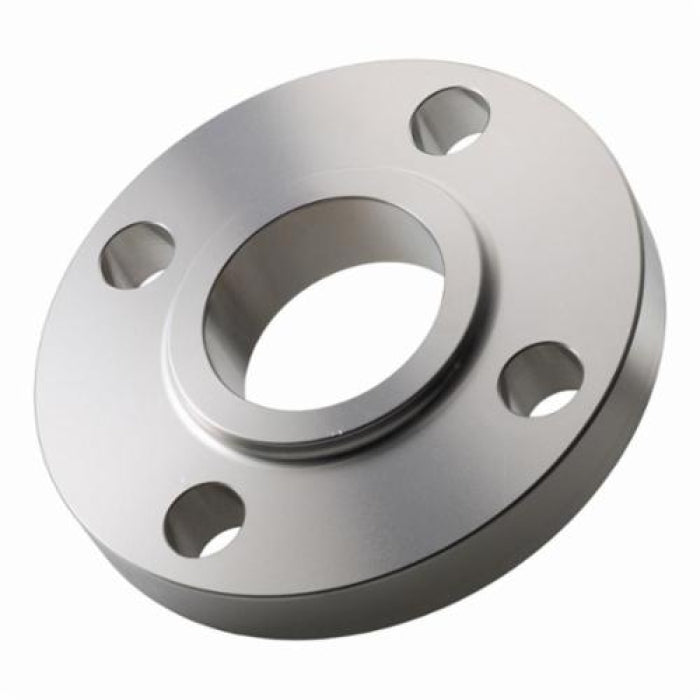

Merit Brass A550L-32 Raised Face Slip-On Flange 2 in 304/304L Stainless Steel 300 lb

Product Description

Merit Brass A550L-32 is a raised face slip-on flange designed for use in pipe applications. This flange has a nominal size of two inches and is made from durable 304/304L stainless steel. Its overall construction supports a pressure class rating of three hundred pounds.

• Compatible with various piping systems
• Constructed from 304/304L stainless steel
• Features eight bolt holes for secure installation

Product Highlights

This slip-on flange is ideal for minimal installation effort while ensuring a stable connection in piping networks. The flange's robust design reduces the risk of leaks and enhances the structural integrity of the piping system.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A550L-32

Technical Specifications

• Bolt Circle Diameter: 5 in
• Bolt Hole Size: 3/4 in
• Domestic/Import: Import
• Hub Diameter: 3.31 in
• Inside Diameter: 2.44 in
• Length Through Hub: 1.31 in
• Material: 304/304L Stainless Steel
• Nominal Size: 2 in
• Number of Bolt Holes: 8
• Outside Diameter: 6-1/2 in
• Pressure Class: 300 lb
• Thickness: 0.88 in
• Type: Raised Face
