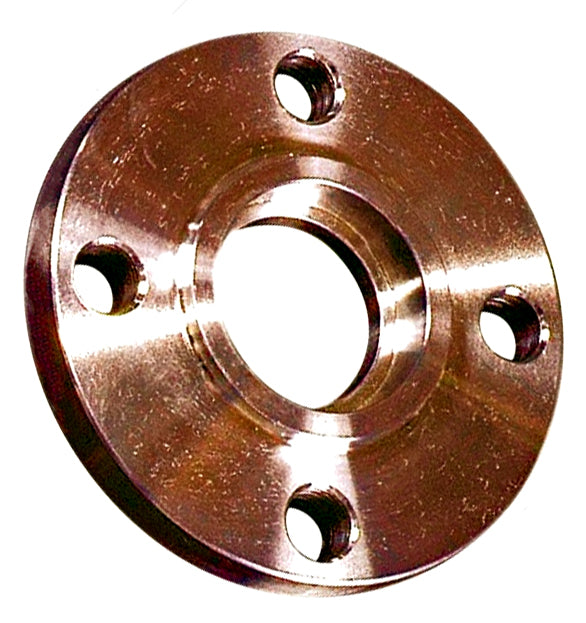

Merit Brass A453L-64 Raised Face Socket Weld Flange 4 in 150 lb SCH 40S

Product Description

Merit Brass A453L-64 is a raised face socket weld flange made from 304/304L stainless steel. This flange has a nominal size of four inches and is suitable for various piping applications. The flange has an inside diameter of four point six inches and an outside diameter of nine inches. This product is built to meet ANSI standards, ensuring reliable connections in plumbing systems.

• Constructed from forged 304/304L stainless steel
• 150 lb pressure rating
• Features eight bolt holes for secure mounting

Product Highlights

This socket weld flange is an essential component for creating strong and leak-proof pipe joints in high-pressure systems.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A453L-64

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.6 in
• Outside Diameter: 9 in
• Thickness: 0.94 in
• Bore Size: SCH 40S
• Pressure Class: 150 lb
• Hub Diameter: 5.31 in
• Length Through Hub: 1.31 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 3/4 in
• Bolt Circle Diameter: 7-1/2 in
• Domestic/Import: Import
