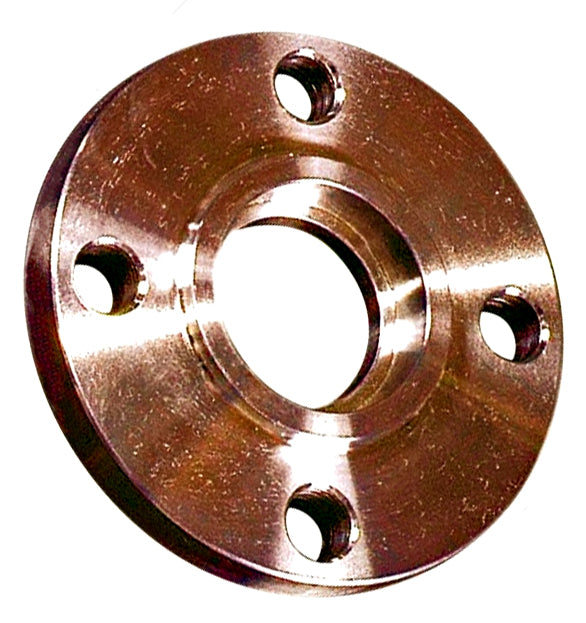

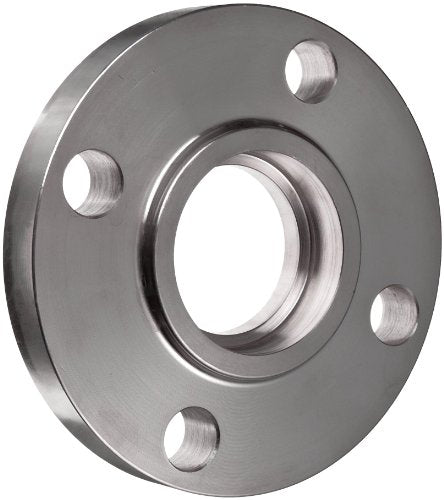

Merit Brass A453L-24 Socket Weld Flange 150 lb 1-1/2 Pipe Size

Product Description

Merit Brass offers the A453L-24 Socket Weld Flange, designed for pipe sizes of one and one-half inches. This flange is constructed from 304/304L stainless steel, ensuring durability and resistance to corrosion. It meets standard ANSI specifications for socket weld connections. This product is ideal for use in various plumbing applications where reliable, leak-proof joints are essential.

• Meets ANSI 150 lb pressure class rating
• Constructed from 304/304L stainless steel
• Compatible with SCH 40S pipes

Product Highlights

The A453L-24 Socket Weld Flange is suitable for high-pressure systems, ensuring secure and robust connections in piping networks.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A453L-24

Technical Specifications

• Nominal Size: 1-1/2 inches
• Inside Diameter: 1.95 inches
• Outside Diameter: 5 inches
• Hub Diameter: 2.56 inches
• Thickness: 0.69 inches
• Length Through Hub: 0.88 inches
• Bolt Circle Diameter: 3.88 inches
• Bolt Hole Size: 1/2 inches
• Number of Bolt Holes: 4
• Bore Size: SCH 40S
• Pressure Class: 150 lb
• Domestic/Import: Import
