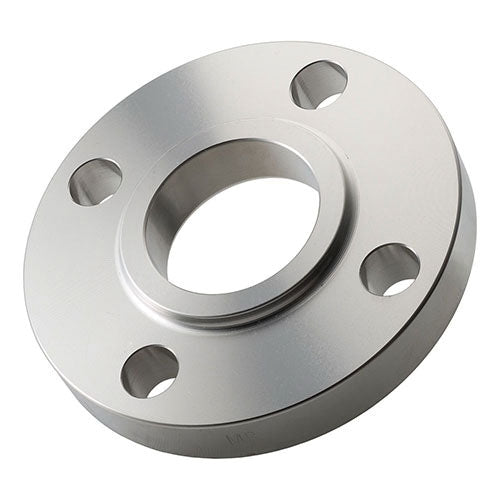

Merit Brass A452L-80 Lap Joint Flange 150 lb 5 in

Product Description

The Merit Brass A452L-80 Lap Joint Flange is a reliable choice for pipe fittings. It is constructed from 304/304L stainless steel. This flange has a nominal size of five inches, making it suitable for various plumbing applications. It meets ANSI and ASME standards for quality and safety.

• Constructed from 304/304L stainless steel
• Meets ANSI B16.5 and ASME SA182 standards
• Designed for Class 150 pressure applications

Product Highlights

This lap joint flange is ideal for low-pressure systems, offering ease of installation and maintenance.

Product Information

Standard Information

• Brand: Merit Brass
• Part Number: A452L-80

Technical Specifications

• Material: 304/304L Stainless Steel
• Pressure Class: Class 150
• Nominal Size: 5 in
• Inside Diameter: 5.69 in
• Outside Diameter: 10 in
• Bolt Circle Diameter: 8-1/2 in
• Bolt Hole Diameter: 0.88 in
• Hub Diameter: 6.44 in
• Length Through Hub: 1.44 in
• Thickness: 0.94 in
• Number of Bolt Holes: 8
• Material Specifications: ASTM A182
