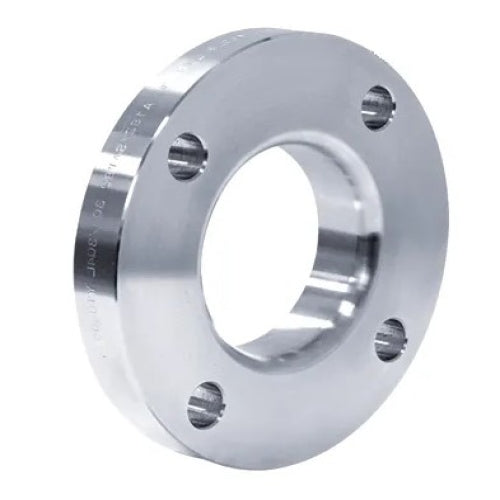

Merit Brass A452L-40 Lap Joint Flange 150 lb 2-1/2 in

Product Description

Merit Brass A452L-40 is a lap joint flange made from 304/304L stainless steel. This flange has a nominal size of two and one-half inches with an inside diameter of two point nine seven inches. The product features a thickness of zero point eight eight inches and a bolt circle diameter of five and one-half inches. It consists of four bolt holes with a size of three-fourths inch, suitable for various piping applications.

• Nominal Size: 2-1/2 inches
• Material: 304/304L Stainless Steel
• Pressure Class: 150 lb

Product Highlights

This lap joint flange is ideal for connecting pipes in different plumbing systems. It is imported and made for reliable performance in various applications.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.97 in
• Thickness: 0.88 in
• Outside Diameter: 7 in
• Hub Diameter: 3.56 in
• Length Through Hub: 1.12 in
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Domestic/Import: Import
