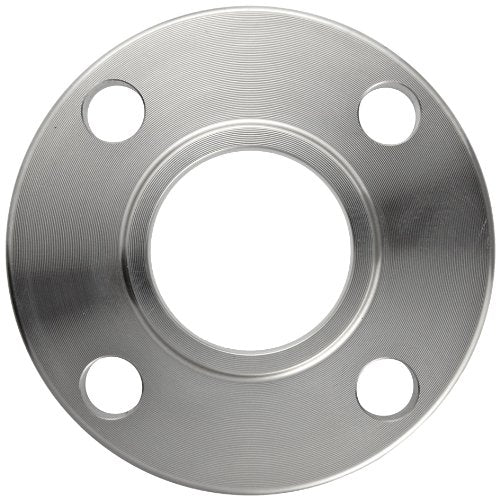

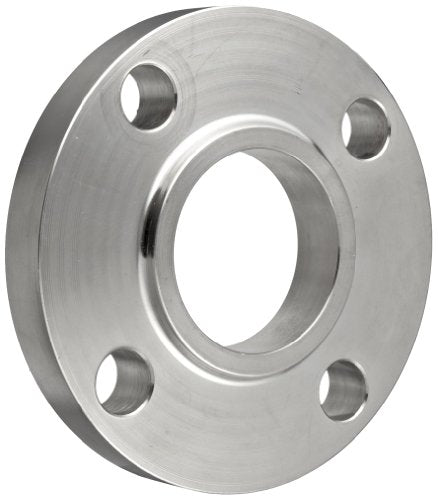

Merit Brass A452L-32 Stainless Steel Lap Joint Flange Class 150 2 Inch Pipe Size

Product Description

The Merit Brass A452L-32 Stainless Steel Lap Joint Flange is engineered for effectively joining pipes in various industrial applications. Its compatibility with a 2 inch pipe size and class 150 pressure rating makes it suitable for moderate pressure applications.

• Constructed from high-grade 304/304L stainless steel for corrosion resistance and durability.
• Features a bolt circle diameter of 4-3/4 inches and a hub diameter of 3.06 inches.
• Meets the standards and certifications of ANSI B16.5 and ASME SA182.

  Product Highlights

  This lap joint flange facilitates easy access to a piping system for inspection and modification. It is prominently used in systems requiring frequent dismantling.

  Product Information

  Standard Information

  • Brand: Merit Brass
  • Model: A452L-32
    Technical Specifications

    Material:

    304/304L Stainless Steel

    Nominal Size:

    2 inches

    Pressure Class:

    Class 150

    Thickness:

    3/4 inch

    Outside Diameter:

    6 inches

    Bore Size:

    2.46 inches

    Number of Bolt Holes:

    4

    Bolt Hole Diameter:

    3/4 inch

    Length Through Hub:

    1 inch
