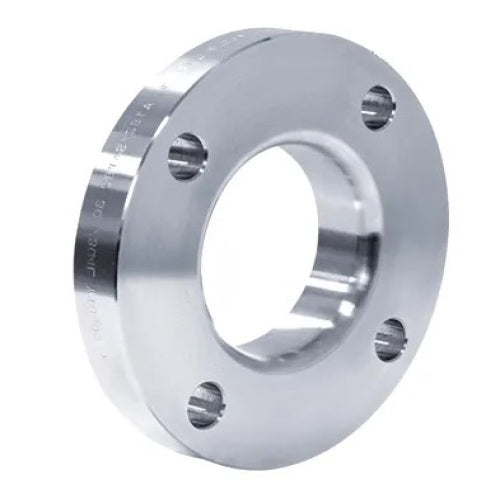

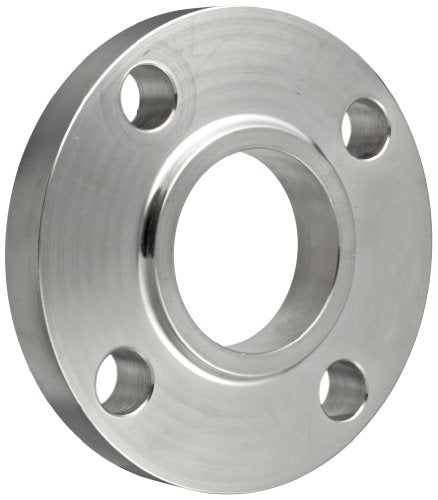

Merit Brass A452L-128 Stainless Steel 304/304L Lap Joint Pipe Fitting Flange Class 150 8 Inch

Product Description

The Merit Brass A452L-128 Stainless Steel 304/304L Lap Joint Pipe Fitting Flange is designed for robust industrial applications. Merit Brass, recognized for their high-quality pipe fittings, ensures durability and reliability with this flange.

• 304/304L stainless steel construction
• Class 150 pressure rating
• 8-inch nominal size

Product Highlights

This flange is ideal for use in various industrial piping systems, ensuring secure and efficient connections. The lap joint design allows for easy alignment and disassembly, making it suitable for systems requiring regular maintenance.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A452L-128
• Material: 304/304L Stainless Steel
• Pressure Class: Class 150

Technical Specifications

• Nominal Size: 8 inches
• Inside Diameter: 8.75 inches
• Outside Diameter: 13.5 inches
• Thickness: 1.12 inches
• Hub Diameter: 9.69 inches
• Length Through Hub: 1.75 inches
• Bolt Circle Diameter: 11.75 inches
• Bolt Hole Diameter: 0.88 inches
• Number of Bolt Holes: 8
• Material Specifications: ASTM A182
• Standards/Certifications: ANSI B16.5, ASME SA182
