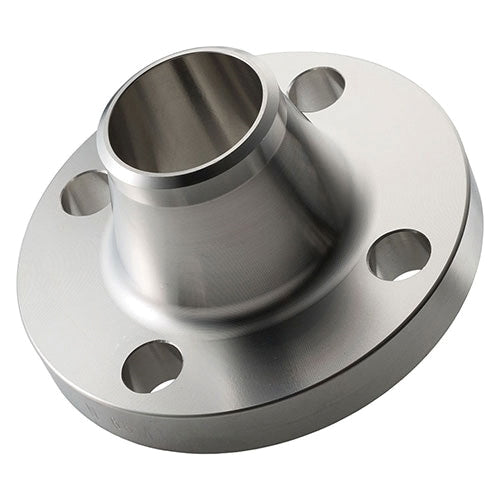

Merit Brass A45140L-96 Weld Neck Flange 6 in Class 150 SCH 40

Product Description

The Merit Brass Weld Neck Flange has the MPN A45140L-96, designed for strong connections in piping systems. It features a nominal size of six inches, making it a crucial component in various industrial applications.

• Constructed from forged 304/304L stainless steel
• Follows ASME SA182 and ANSI B16.5 standards
• Designed for durability and reliability in high-pressure environments

Product Highlights

Ideal for joining pipes securely while providing leak-proof and strong connections.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45140L-96
• Material: 304/304L Stainless Steel

Technical Specifications

• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Diameter: 0.88 in
• Bore Size: 6.07 in
• Connection Size: 6 in
• Hub Diameter: 7.56 in
• Length Through Hub: 3-1/2 in
• Outside Diameter: 11 in
• Thickness: 1 in
• Pressure Class: Class 150
• Schedule: SCH 40
• Number of Bolts: 8
• Method of Manufacturer: Forged
• Material Specifications: ASTM A182
