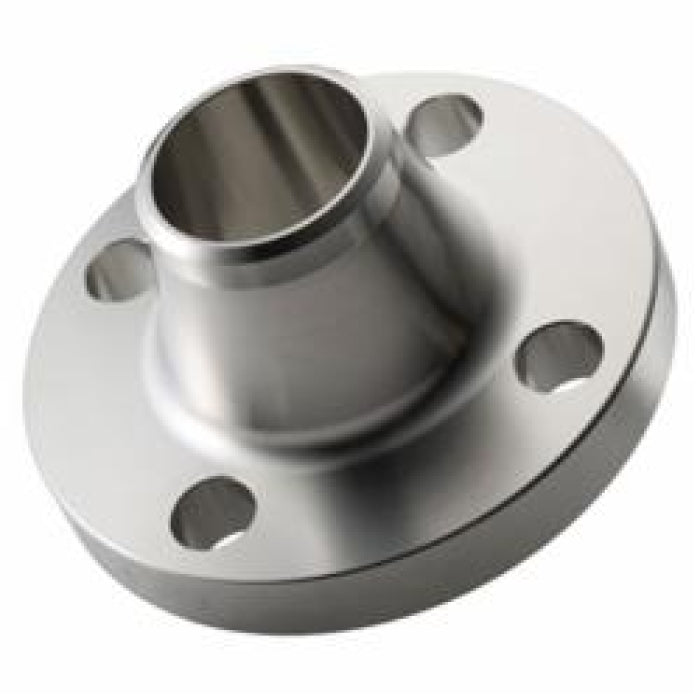

Merit Brass A45140L-80 Raised Face Weld Neck Flange 5 in

Product Description

Merit Brass A45140L-80 is a raised face weld neck flange with a nominal size of five inches. This flange is made from forged 304/304L stainless steel and is designed to handle a pressure class of 150 lb. The flange has a bolt circle diameter of eight and one-half inches and features eight bolt holes for secure installation.

• Material: Forged 304/304L Stainless Steel
• Thickness: 0.94 inches
• Bore Size: SCH 40/STD

Product Highlights

This weld neck flange is suitable for various piping systems requiring reliable connections. Its durable construction ensures long-lasting performance in demanding environments.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45140L-80

Technical Specifications

• Nominal Size: 5 inches
• Inside Diameter: 5.05 inches
• Outside Diameter: 10 inches
• Thickness: 0.94 inches
• Length Through Hub: 3-1/2 inches
• Hub Diameter: 6.44 inches
• Number of Bolt Holes: 8
• Bolt Hole Size: 0.88 inches
• Bolt Circle Diameter: 8-1/2 inches
• Pressure Class: 150 lb
• Bore Size: SCH 40/STD
• Domestic/Import: Import
