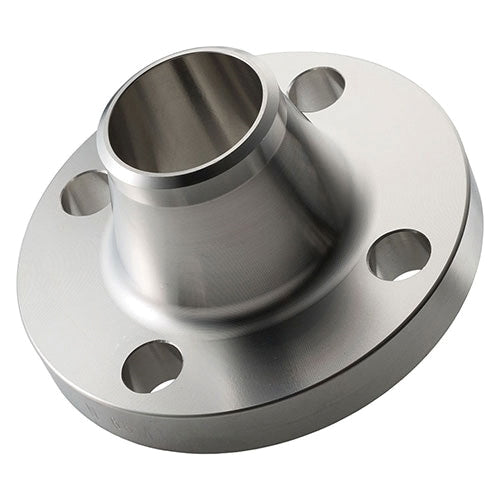

Merit Brass A45140L-24 Raised Face Weld Neck Flange 150 lb 1-1/2 in

Product Description

The Merit Brass A45140L-24 is a raised face weld neck flange made from forged 304/304L stainless steel. This fitting is designed for durability and performance, ideal for various industrial applications. It is compatible with a nominal connection size of one and a half inches and features a solid bore design.

• Bolt circle diameter of three point eighty-eight inches
• Thickness of zero point sixty-nine inches
• Meets ASME SA182 and ANSI B16.5 standards

Product Highlights

This product is suitable for high-pressure applications and is ideal for weld neck connections.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45140L-24

Technical Specifications

• Nominal Size: 1-1/2 in
• Bore Size: 1.61 in
• Outside Diameter: 5 in
• Hub Diameter: 2.56 in
• Length Through Hub: 2.44 in
• Thickness: 0.69 in
• Pressure Class: 150 lb
• Schedule: SCH 40
• Number of Bolts: 4
• Bolt Hole Diameter: 0.62 in
• Bolt Circle Diameter: 3.88 in
• Material: 304/304L Stainless Steel
• Method of Manufacturer: Forged
