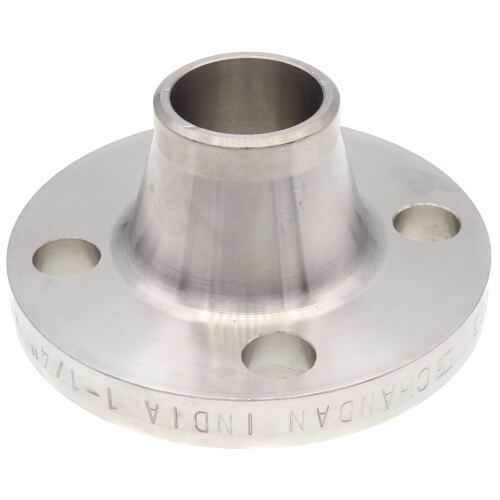

Merit Brass A45140L-20 Raised Face Weld Neck Flange 150 lb 1-1/4 in

Product Description

The Merit Brass A45140L-20 is a raised face weld neck flange made from forged 304/304L stainless steel. This flange has a nominal size of one and one fourth inches and features a thickness of zero point sixty-two inches. It is designed for welding applications and has a pressure rating of 150 pounds.

• Nominal Size: 1-1/4 inches
• Material: Forged 304/304L Stainless Steel
• Pressure Rating: 150 lb

Product Highlights

The Merit Brass weld neck flange is suitable for various plumbing and piping applications. It provides a reliable connection point and is engineered for strength and durability.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45140L-20

Technical Specifications

• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 0.62 inches
• Bore Size: SCH 40S
• Domestic/Import: Import
• Hub Diameter: 2.31 inches
• Inside Diameter: 1.38 inches
• Length Through Hub: 2-1/4 inches
• Number of Bolt Holes: 4
• Outside Diameter: 4.62 inches
• Thickness: 0.62 inches
