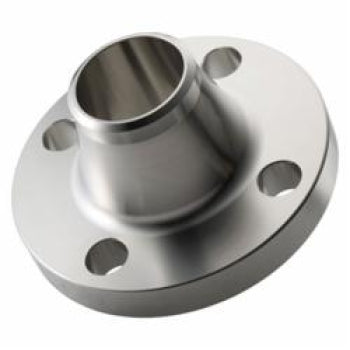

Merit Brass A45110L-24 Raised Face Weld Neck Flange 1-1/2 in

Product Description

The Merit Brass A45110L-24 is a raised face weld neck flange designed for a nominal size of one and one-half inches. Made from forged 304/304L stainless steel, this flange can support a pressure class of 150 lb. The inside diameter measures one point six one inches and it has a thickness of zero point six nine inches.

• Nominal Size: 1-1/2 inches
• Material: Forged 304/304L Stainless Steel
• Pressure Class: 150 lb

Product Highlights

This flange features a bore size of SCH 10 and a hub diameter of two point five six inches. It includes four bolt holes and has an outside diameter of five inches, making it suitable for various piping applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45110L-24

Technical Specifications

• Bolt Circle Diameter: 3.88 inches
• Bolt Hole Size: 0.62 inches
• Bore Size: SCH 10
• Domestic/Import: Import
• Hub Diameter: 2.56 inches
• Inside Diameter: 1.61 inches
• Length Through Hub: 2.44 inches
• Number of Bolt Holes: 4
• Outside Diameter: 5 inches
• Thickness: 0.69 inches
• Type: Raised Face
