Merit Brass A45110L-192 Weld Neck Flange 12 in 150 lb

Product Description

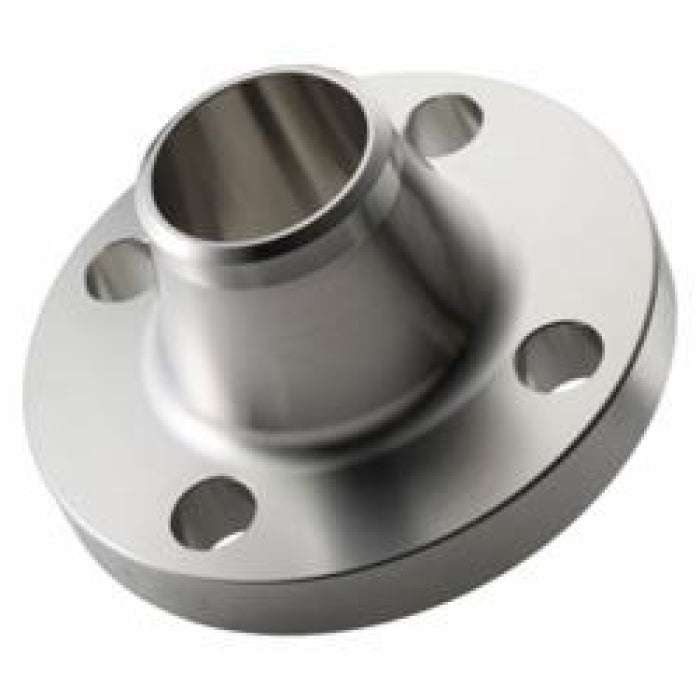

Merit Brass A45110L-192 is a weld neck flange made from forged 304/304L stainless steel. It features a nominal diameter of twelve inches and an inside diameter of twelve inches. This flange has a raised face, a thickness of one and one-quarter inches, and is designed for a schedule ten bore. It includes a bolt circle of seventeen inches with twelve bolt holes.

• Material: Forged 304/304L stainless steel
• Pressure class of 150 lb
• Suitable for high-pressure applications

Product Highlights

This weld neck flange is ideal for use in piping systems requiring strong, reliable connections. It is primarily used in high-pressure settings, making it a critical component in industrial applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A45110L-192

Technical Specifications

• Nominal Size: 12 in
• Inside Diameter: 12 in
• Outside Diameter: 19 in
• Thickness: 1-1/4 in
• Length Through Hub: 4-1/2 in
• Hub Diameter: 14.38 in
• Bolt Circle Diameter: 17 in
• Bolt Hole Size: 1 in
• Number of Bolt Holes: 12
• Bore Size: SCH 10
• Pressure Class: 150 lb
• Domestic/Import: Import
