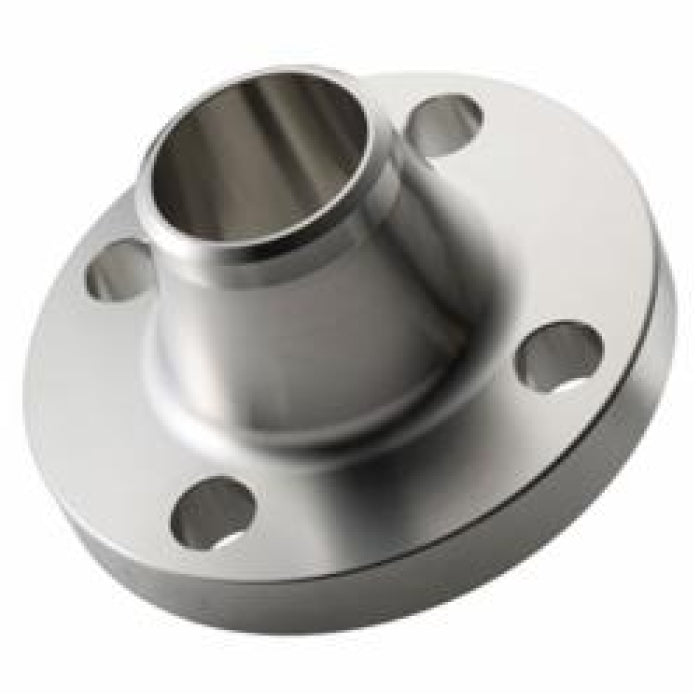

Merit Brass A45110L-160 Raised Face Weld Neck Flange 10 in 150 lb SCH 10 Bore

Product Description

Merit Brass A45110L-160 is a raised face weld neck flange designed for reliable connections in pipe systems. This flange features a nominal size of ten inches and is made from forged 304/304L stainless steel. It is suitable for various industrial applications requiring robust and safe fittings.

• Construction: Forged 304/304L stainless steel
• Pressure Class: 150 lb
• Standard Size: 10 inches with SCH 10 bore

Product Highlights

This weld neck flange ensures secure connections and is ideal for piping systems in industrial and construction projects.

Product Information

Standard Information

• Brand: Merit Brass
• Material: Forged 304/304L Stainless Steel

Technical Specifications

• MPN: A45110L-160
• Nominal Size: 10 in
• Inside Diameter: 10.02 in
• Outside Diameter: 16 in
• Thickness: 1.19 in
• Hub Diameter: 12 in
• Length Through Hub: 4 in
• Bolt Circle Diameter: 14-1/4 in
• Number of Bolt Holes: 12
• Bolt Hole Size: 1 in
• Pressure Class: 150 lb
• Bore Size: SCH 10
• Domestic/Import: Import
