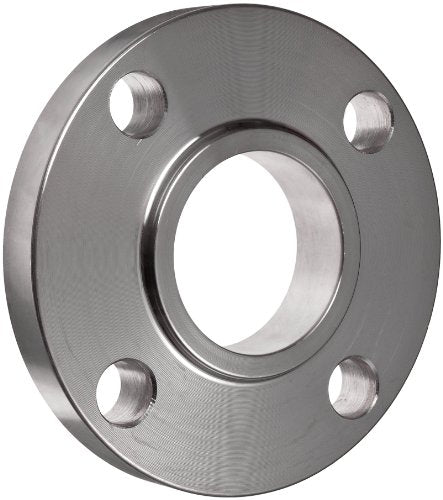

Merit Brass A450L-64 Stainless Steel ANSI RF Slip-On Flange 150 lb 4 Inch

Product Description

The Merit Brass model A450L-64 represents a 4 inch raised face slip-on flange, meticulously crafted from 304/304L stainless steel. This slip-on flange is designed to adhere to ANSI B16.5 standards, ensuring high compatibility and performance in plumbing applications.

• Manufactured with precision, offering a stable and reliable connection.
• 150-pound pressure class for robust handling capabilities.
• Suitable for a wide range of operating temperatures and environments.

Product Highlights

This flange features a 9 inch outside diameter and a 4.57 inch bore size, providing a tight and secure fit. Its 0.94 inch thickness and crafted under strict material specifications of ASTM A182, this flange offers durability and long-lasting performance.

Product Information

Standard Information

• Type: Raised Face
• Material: 304/304L Stainless Steel

Technical Specifications

• Outside Diameter: 9 inches
• Bore Size: 4.57 inches
• Thickness: 0.94 inches
• Bolt Circle Diameter: 7-1/2 inches
• Number of Bolts: 8
• Pressure Class: 150 lb
• Connection Size: 4 inches
• Length Through Hub: 1.31 inches
