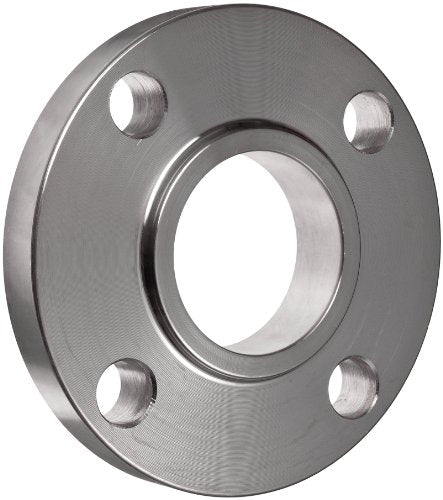

Merit Brass A450L-48 Stainless Steel Slip-On Flange 150 lb 3 Inch

Product Description

The Merit Brass model A450L-48 is a 3-inch Stainless Steel Slip-On Flange designed for streamlined pipe assembly. This class 150 flange conforms to ANSI B16.5 standards ensuring reliable and standardized dimensions and specifications perfect for industrial applications.

• Engineered with a bolt circle diameter of six inches.
• Features a hub diameter of four and a quarter inches, enhancing its stability and fit.
• Boasts a robust forged construction, made from ASTM A182 grade 304/304L stainless steel, offering excellent corrosion resistance.

Product Highlights

This slip-on flange is ideal for both new installations and repairs. It features a raised face design which increases the surface area for sealing, leading to better pressure containment and reduced leaks.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A450L-48

Technical Specifications

• Outside Diameter: 7-1/2 inches
• Thickness: 0.94 inches
• Length Through Hub: 1.19 inches
• Bore Size: 3.57 inches
• Bolt Hole Diameter: 3/4 inches
• Number of Bolts: 4
• Pressure Class: Class 150
• Standards/Certifications: ANSI B16.5
