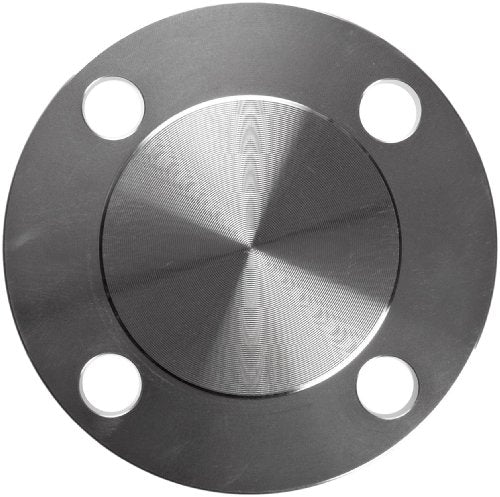

Merit Brass A435BL-128 Stainless Steel Blind Flange 150 lb 8 Inch

Product Description

The Merit Brass A435BL-128 is a high-quality stainless steel blind flange designed for robust piping applications. Ideal for capping or covering the end of a piping system, this flange is crafted using 304/304L stainless steel for corrosion resistance and durability.

• Robust 150 pound class rating ensures a solid, leak-proof connection.
• 8 inch nominal size with a bolt circle diameter of 11-3/4 inches.
• Raised face design enhances sealing and installation ease.

Product Highlights

This stainless steel blind flange is engineered to meet ASTM A182 standards and ANSI B16.5 for dimensions and tolerances, affirming its quality and consistency in industrial configurations.

Product Information

Standard Information

• Type: Raised Face
• Material: 304/304L Stainless Steel

Technical Specifications

• Thickness: 1.12 inches
• Outside Diameter: 13.5 inches
• Pressure Class: 150 lb
• Bolt Circle Diameter: 11-3/4 inches
• Number of Bolt Holes: 8
• Bolt Hole Size: 0.88 inches
• Hub Diameter: 9.69 inches
