Product Description

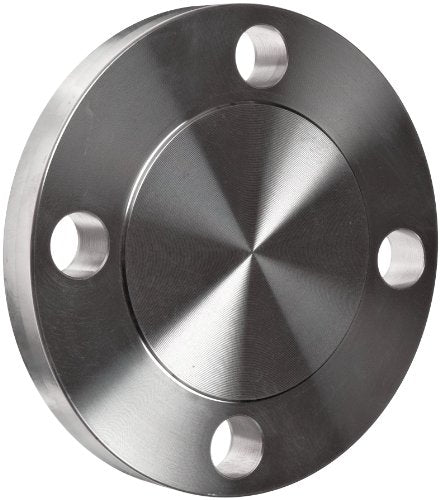

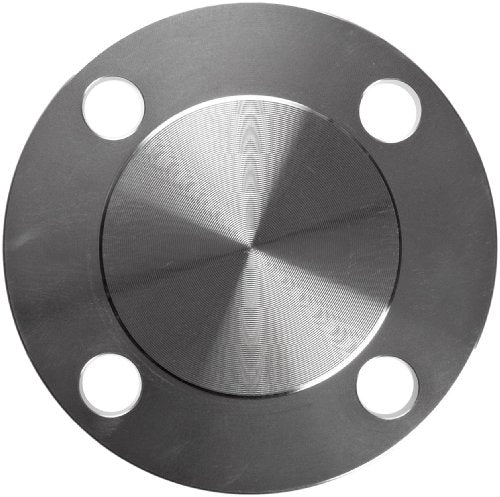

The Merit Brass A435BL-08 is a robust stainless steel blind flange designed specifically for pipe systems in industrial applications. Manufactured by a trusted name in pipe fittings, this blind flange ensures a tight and secure seal in high-pressure environments.
- Designed for a 1/2 inch pipe size with a pressure rating of 150 psi.
- Features a raised face and a bolt circle diameter of 2.38 inches.
- Made from high-grade 304/304L stainless steel for excellent corrosion resistance.
Product Highlights
This flange is ideal for closing off pipelines and pressure vessel openings. It is often used in the maintenance of pneumatic or hydraulic systems.
Product Information
Standard Information
-
Nominal Size: 1/2 inch
-
Pressure Class: 150 lb
Technical Specifications
-
Material: 304/304L Stainless Steel
-
Bolt Circle Diameter: 2.38 inches
-
Hub Diameter: 1.19 inches
-
Thickness: 0.44 inches
-
Number of Bolt Holes: 4
-
Bolt Hole Size: 0.62 inches
-
Outside Diameter: 3-1/2 inches
