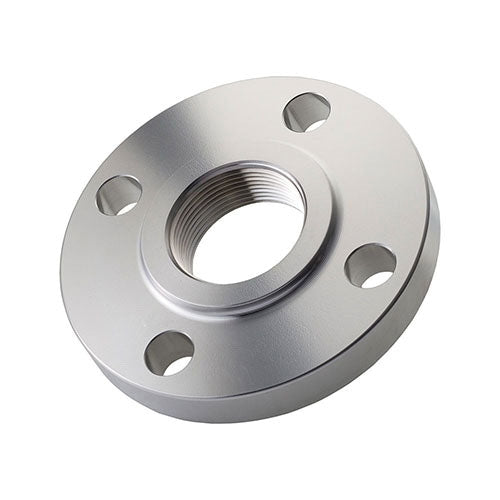

Merit Brass A435-96 Raised Face Threaded Flange 150 6 in

Product Description

The Merit Brass A435-96 is a raised face threaded flange made from ASTM A182 certified materials. It features a nominal size of six inches and is suitable for Class 150 pressure applications. This product is manufactured using durable 304/304L stainless steel, ensuring long-lasting performance in various piping systems.

• Constructed from 304/304L stainless steel
• Meets ASME SA182 and ANSI B16.5 standards
• Designed for six-inch connections with threaded ends

Product Highlights

This threaded flange is designed for simple and efficient installation in piping systems, offering a reliable connection.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A435-96

Technical Specifications

• Connection Size: 6 in
• Connection Type: FNPT
• Outside Diameter: 11 in
• Thickness: 1 in
• Pressure Class: Class 150
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Diameter: 0.88 in
• Number of Bolts: 8
• Length Through Hub: 1.56 in
• Hub Diameter: 7.56 in
• Method of Manufacturer: Forged
• Domestic/Import: Import
